20 Points Infrared Touch Smart Interactive Board For School
Product Description Interactive panel is an integrated new technology to provide solutions of diversified office meeting, class teaching. It adopts HD LCD to act as a platform providing display and operation service. Aim to improve the efficiency of meeting, display and on-site instructions,...
Product Description
Interactive panel is an integrated new technology to provide solutions of diversified office meeting, class teaching. It adopts HD LCD to act as a platform providing display and operation service. Aim to improve the efficiency of meeting, display and on-site instructions, It's designed with functions like writing, annotation, interaction, teleconference and multimedia, data transfer etc.
Features
1.Adjusting the atmosphere: touch screen conference all-in-one machine can play dynamic video, documents, can mobilize the enthusiasm of the participants in the meeting, ZongShiGuang touch screen will all-in-one machine using the original LG panel, 178 ° viewing angle, no matter which corner sitting in the conference room can clearly see the screen display content.
2.Easy manageability: Our monitors can be managed remotely using RS232 and RJ45 interfaces.
3.Free annotation: remark or annotate any details at any time without limit to the meeting records.
|
Specifications
|
|
|
LCD Panel Size
|
86 inch
|
|
Resolution
|
4k 3840×2160
|
|
Panel back light
|
TFT-LCD Module
|
|

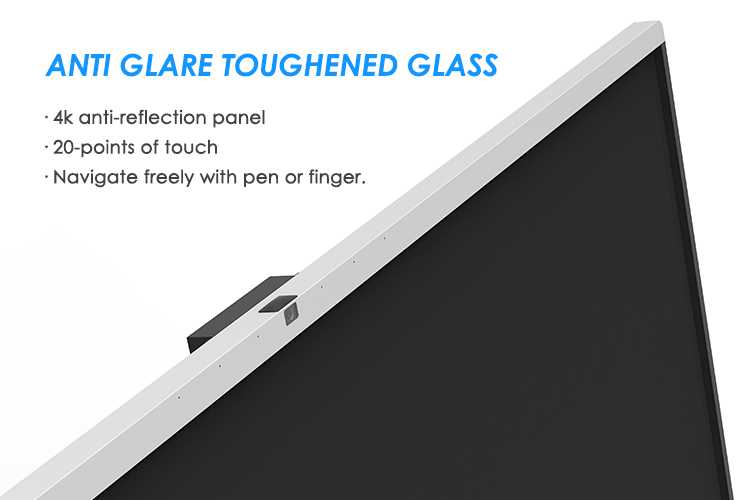

Panel Protection
|
Tempered Glass,Anti-Glare glass
|
|
Picture scale
|
16:9
|
|
Refresh frequency
|
60Hz
|
|
Gamut NTSC(Typ)
|
72%
|
|
Backlight Type
|
DLED
|
|
|
Android Configuration
|
|
CPU
|
ARM Cortex A73*2 and A53*2
|
|
GPU
|
Dual core Mali-G51
|
|
RAM
|
4GB
|
|
ROM
|
32GB
|
|
WIFI
|
2.4GHz/5 GHz
|
|
Bluetooth
|
Support
|
|
Android OS
|
Android 8.0/11
|
|
Input/output
|
HDMI 2.0，VGA，T-RF，USB 2.0，USB3.0，TF card，AV，RGB，RS232，Touch Port，Earphone，SPDIF
|
|
|
Windows Configuration
|
|
CPU
|
i3/i5/i7
|
|
RAM
|
4/8/16/32 GB DDR4
|
|
Internal memory
|
128/256/512 GB SSD
|
|
Windows OS
|
Windows 7, 8.1, 10
|
|
Input/output
|
HDMI 2.0,USB 2.0*4, USB 3.0*2,RJ45*1,
|
|
WIFI
|
2.4GHz/5 GHz
|
|
|
Touch Screen
|
|
Touch Type
|
Infra-red
|
|
Points
|
20 points
|
|
Response Time
|
Less than 5ms
|
|
Touch Way
|
Pen, Finger or other
|
|
Position Accuracy
|
±1mm
|
Design of Product
Interactive board is an intelligent interactive touch all-in-one machine that integrates the functions of computer, projector, TV, electronic whiteboard, advertising machine, and audio.
Advantages of Product
1)Increase students' interaction and team collaboration.
2)Promote real-time videos and audio lessons.
3)PowerPoint presentation becoming second nature in the classroom.
Accessories of Product
We provide interactive board wall mount bracket. User manual, remote control, magnetic stick infrared stylus, power cord.
Installation and use instructions
Complete video instruction, user manual will be provided for reference. otherwise, we have professional service team to provide 7/24 online support or video call instruction. Drawing instruction will be provided for special project.
