4K UHD LCD Classroom Digital Interactive Board

4K UHD LCD Classroom Digital interactive Board supports multi-person and multi-device editing and sharing on the 4K UHD interactive board in real-time. Ideate, brainstorm, and collaborate remotely on the same canvas across the world.

Download

Send Inquiry

Product Details

4K UHD LCD Classroom Digital interactive Board

Specification

Specifications
LCD Panel Size	55/65/75/85/86/98/100 inch
Resolution	4k 3840×2160
Panel back light	TFT-LCD Module
Panel Protection	Tempered Glass,Anti-Glare glass
Picture scale	16:9
refresh frequency	60Hz
Gamut NTSC(Typ)	72%
Backlight Type	DLED
	Android Configuration
CPU	ARM Cortex A732 and A532
GPU	Dual core Mali-G51
RAM	4GB
ROM	32GB
WIFI	2.4GHz/5 GHz
Bluetooth	Support
Android OS	Android 8.0
Input/output	HDMI 2.0，VGA，TV-RF，USB 2.0，USB3.0，TF card，AV，RGB，RS232，Touch Port，Earphone，SPDIF
	Windows Configuration
CPU	i3/i5/i7
RAM	4/8/16/32 GB DDR4
Internal memory	128/256/512 GB SSD
Windows OS	Windows 7, 8.1, 10
Input/output	HDMI 2.0,USB 2.04, USB 3.02,RJ45*1,
WIFI	2.4GHz/5 GHz
	Touch Screen
Touch Type	Infra-red
Points	20 points
Response Time	Less than 5ms
Touch Way	Pen, Finger or other
Position Accuracy	±1mm
	Others
Accessories	Remote Controller.Wall Mount Racker Touch Pen.User Manual.Power cable
Speaker	8*12W speakers (Front)
Pixel camera	800/1200/4200 Mil

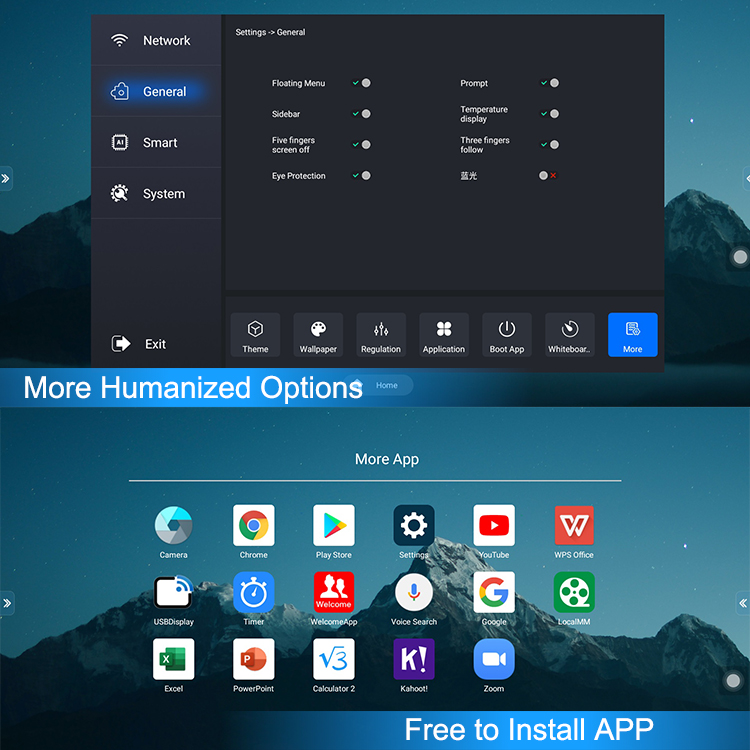

Interactive board: Ultra high 4K resolution，Sensitive 20 points IR touch，Built in professional whiteboard software，Professional Anti-Glare glass.Dual System:  Open ecosystem allows you to choose whichever apps are best for you and your organization. Interactive board have dual systems, Android and windows, you can use existing Zoom, Google Meet, Microsoft Teams, Webex and other popular 3rd party video conferencing meetings .
Wireless Share:  Smart board supports up to 4 users to screencast simultaneously via Airplay and Eshare, or by connecting in via HDMI. With your screen cast, you can annotate as needed, share via video conferencing, or  screenshots.
