21.5 Inch Self-Service Ordering Kiosk Payment Terminal Kiosk With Touch Screen
21.5 inch touch screen self service ordering kiosk payment terminal kiosk，Flexible customizationand simplify theordering processKiosks for restaurant and retailersSelf-ordering，HD Full HD liquid display ear , nchcolors , fine with image quality...

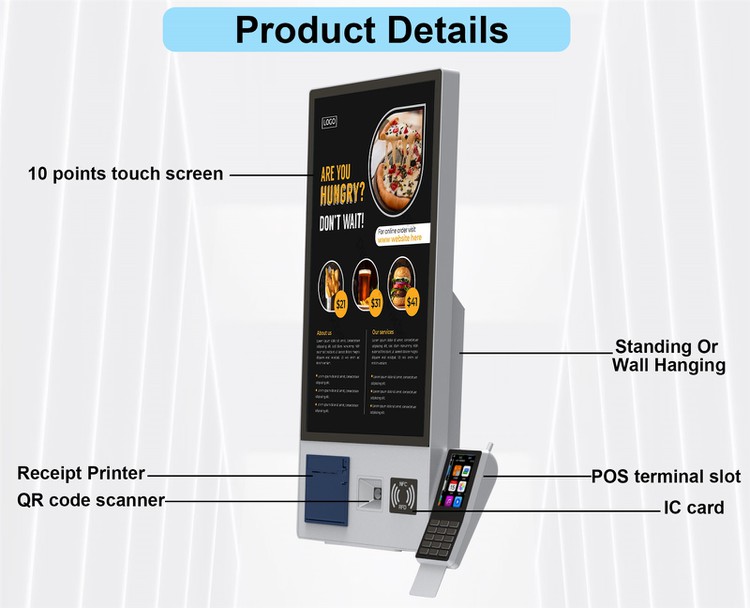

Product Details

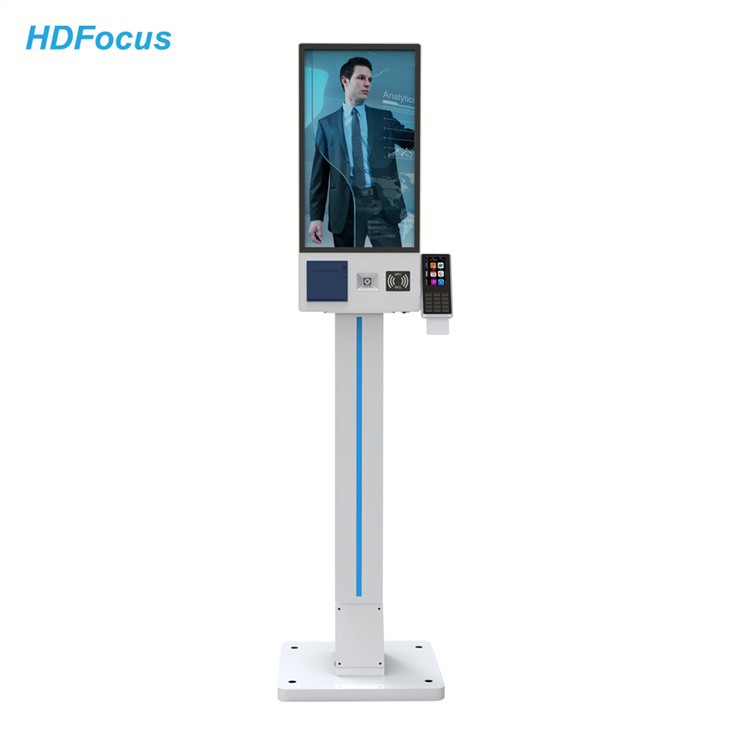

Self service kiosk
HD-215U-T Specification
Main Features
✓ Excellent design with a unique shape, self-ordering solution;

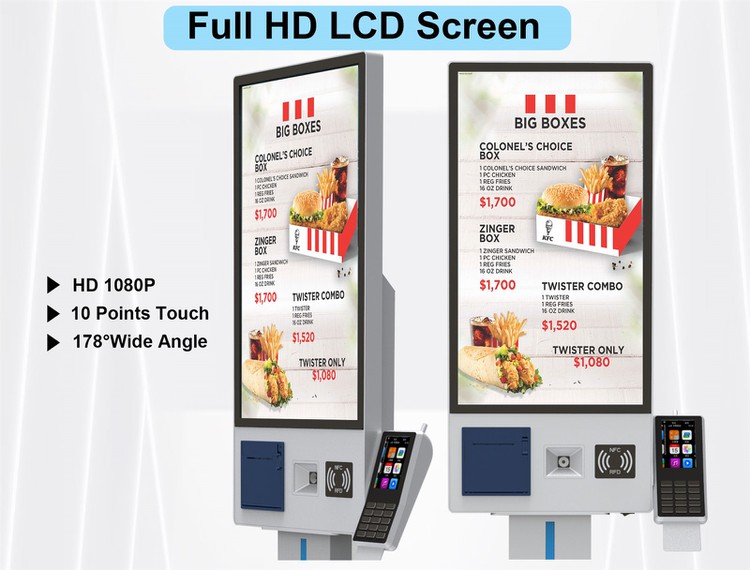

✓ 21.5” brand new original panel with LED backlight;
✓ Support full HD 1920*1080P resolution;
✓ Support Android OS (Can customize Windows OS);
✓ Sensitive 10 points capacitive touch;
✓ Built-in 58mm thermal printer;
✓ Built-in QR code scanner;

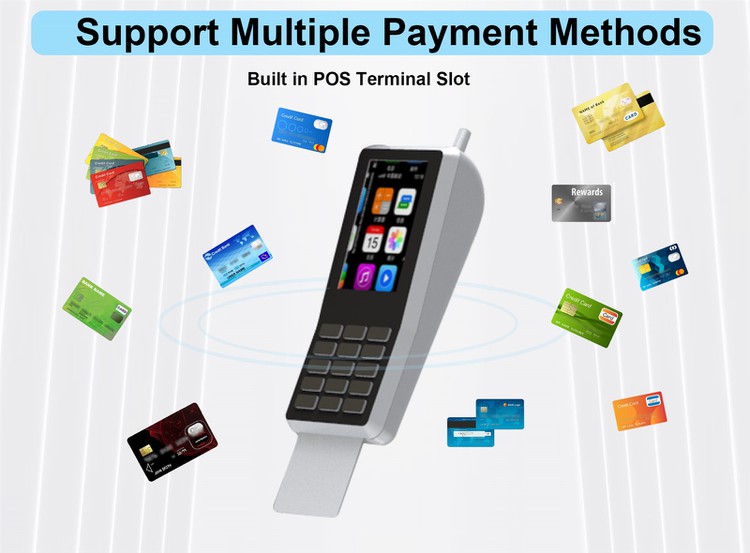

✓ Built-in POS terminal slot;
✓ Support HD-DS digital signage software, as a total solution;
✓ Support WIFI and RJ45 network connection;
✓ Industrial level design, support 24/7 working;
✓ CE*ROHS certified.
Product Parameters
Display：
| Model |
HD-215U-T Android Pro
|
|
Display Panel
|
21.5” LCD screen with LED backlight
|
|
Display Ratio
|
16:9
|
|
Color
|
16.77M colors
|
|
Display Area
|
476.064(H)*267.786(V)mm
|
|
Resolution
|
1920*1080
|
|
Brightness
|
450cd/m2
|
|
Contrast
|
≥ 1000:1
|
|
View Angle
|
178°left and right, up and down
|
|
Points Distance
|
0.282(H)*0.282(V)mm
|
Performance：
|
CPU
|
Quad-core Cortex-A55, RK3568
|
|
Frequency
|
2.0GHz
|
|
RAM
|
DDR4- 2G (can customize 4G)
|
|
Storage
|
EMMC 16G (can expand )
|
|
GPU
|
ARM G52 2EE
|
|
Graphic Card
|
Integrated graphics card
|
|
Network Card
|
10/100M adaptive card
|
|
WIFI&Bluetooth
|
Support WIFI and Bluetooth 4.0
|
|
4G Function
|
Can customize 4G function(optional)
|
|
OS
|
Android OS 11.0 and above
|
Interface：
|
USB
|
USB 2.0*1, USB 3.0*1
|
|
HDMI Output
|
HDMI*1
|
|
TF Card Slot
|
TF card slot*1
|
|
SIM Card Slot
|
SIM card slot*1
|
|
Headphone Audio Output
|
Headphone Audio Output*1
|
|
Network
|
RJ45*1
|
|
WIFI
|
WIFI*1, support 802.11 b/g/n
|
Capacitive Touch：
|
Touch Type
|
Capacitive touch, G+G
|
|
Points
|
10 points
|
|
Glass Cover
|
Tempered glass cover
|
|
Response Time
|
Less than 5ms
|
|
Resolution
|
32767 * 32767
|
|
Position Accuracy
|
±1.5mm
|
|
Communication
|
USB2.0
|
|
Life Time
|
Over 80,000,000 touches
|
Dimension

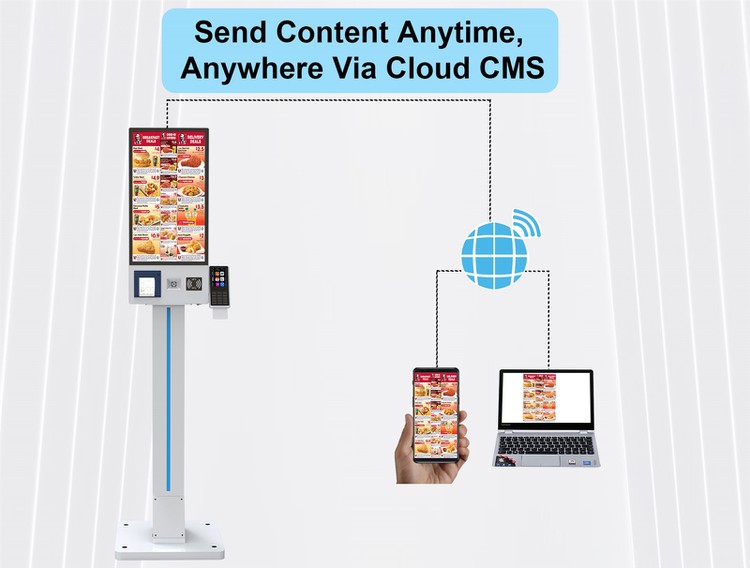

HD-DS Digital Signage Software

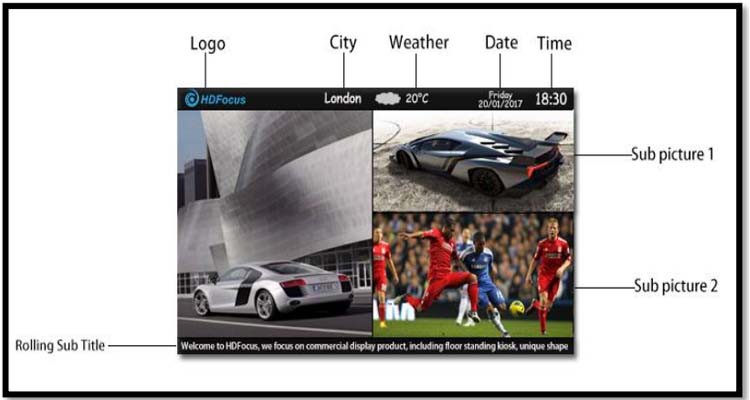

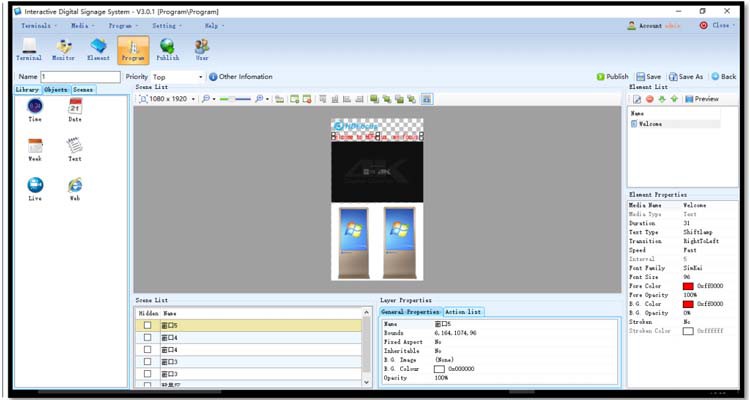

Program Interface Edited by HD-DS Software
HD-DS Key Features:
※ Easy to operate, user can manage the system anywhere as long as he has internet access;
※ Support online edit program and release program;
※ Support visually make a program, can preview the program immediately;
※ Support centrally manages the system, but every terminal will download the program and
play locally;
※ Networking based, central control of multiple kiosks;
※ Remotely control, such as restart, volume adjust, and system upgrade;
