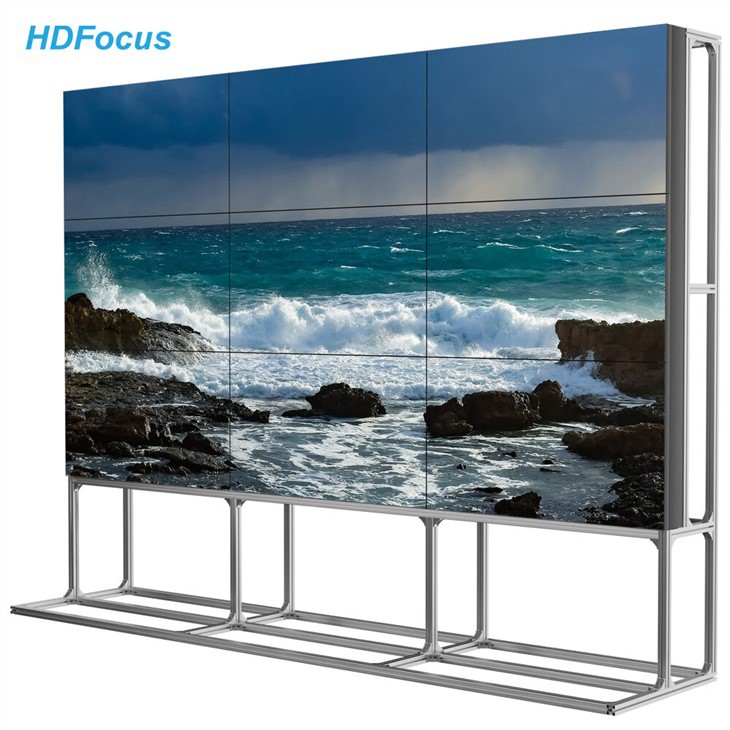

3x3 Video Wall For Shopping Mall
3x3 video wall for shopping mall, this is an LCD video wall solution, used for the shopping mall advertising, bigger display to attract more clients. The video wall size is 55 inch, 3.5mm bezel, other bezels also availabe: 3.5mm, 1.8mm and 0.8mm; we use the original Samsung and LG brand new panel, so the display quality is assured, but with very competitive price.
HDV55 Main Features:
Video Wall 55”
Share
Achieve Ultimate Picture Quality through Advanced Factory CalibrationCaptivate
Audiences through a Narrow Bezel and Optimized Panel Design
High-Performing Display Readability and Durability for your Business EnvironmentNarrow bezel of 3.5mm,
other bezels available: 1.8mm and 0.8mmFull HD resolution of 1920*1080P;Built in control software as a total solution.
Detailed product specification:
Display Screen | 55” FHD-LCD panel with LED backlight |
Panel Brand | Samsung |
Display Ratio | 16:9 |
Bezel | 3.5mm |
Color | 16.77M full colors |
Display area | 1209.6mm(H)*680.4mm(V) |
Resolution | 1920*1080 |
Brightness | 500cd/m2 |
Life time | Over 50,000 Hours |
Contrast | 3500:1 |
View Angle | 178° left and right, up and down |

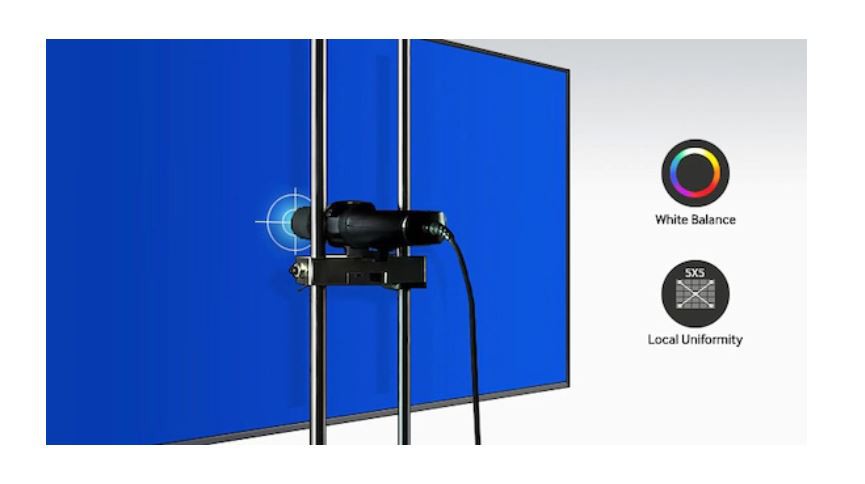

Achieve Ultimate Picture Quality through Advanced Factory Calibration duing production before shipping

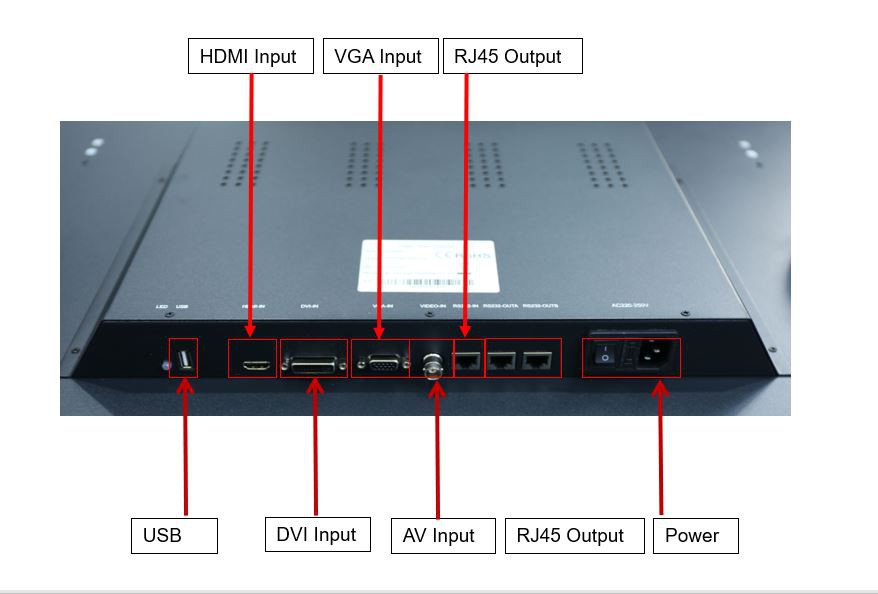

There are rich input and output interface, like the following pictures:
USB | USB*1 |
HDMI Input | HDMI*1 |
VGA Input | VGA*1 |
DVI Input | DVI-I*1 |
AV Input | AV *1 |
RJ 45 Input | RJ45 Input*1 |
RJ 45 Output | RJ45 Output*2 |

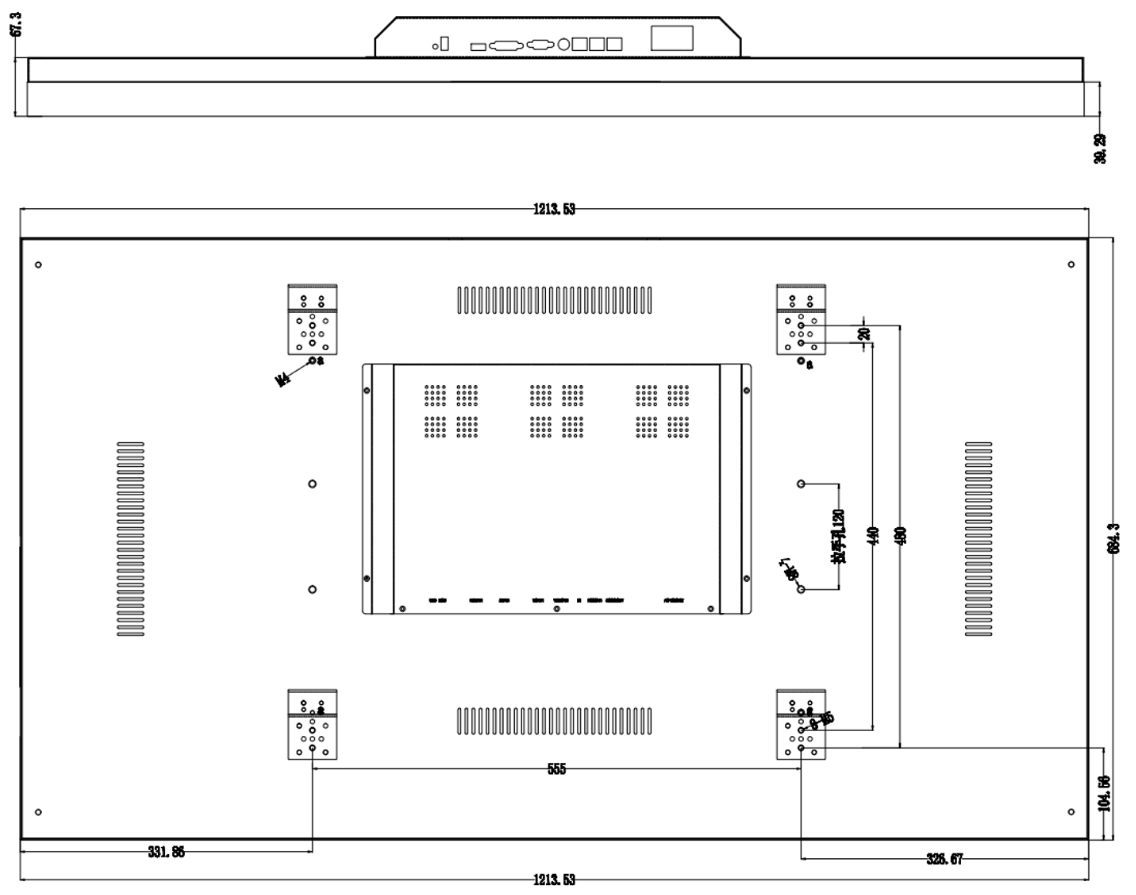

HDV55 product dimension:
Format | PAL, NTSC |
Voltage | DC12V/AC100-240V 50/60Hz |
Power Output | ≤ 280W |
Working Temp | 0－ 60 ℃ |
Net Dimension | 1213.53mm×684.3mm×67.3mm |
Package Dimension | 1340mm×860mm×135mm |

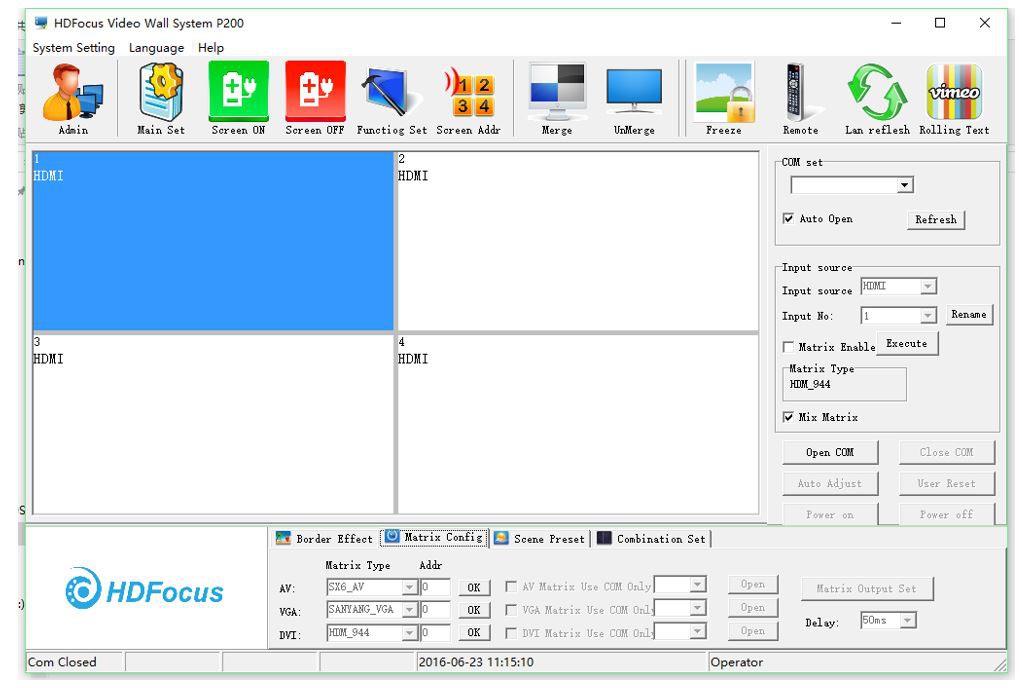

Software: Multi-Screen Display System
We offer detailed user manual to use this software, it is easy to use:
More specifications:
Diagonal Size55"
Panel TypeD-LED DID
Resolution1920 x 1080
Pixel Pitch (HxV)3.5mm
Active Display Size (HxV)1209.6 x 680.4mm
Contrast Ratio4000:1
Viewing Angle (H/V)178/178
Response Time8 ms
Display Color8 bit - 16.7M
Color Gamut72 %
H-Scanning Frequency30kHz ~ 81kHz
Maximum Pixel Frequency148.5MHz
V-Scanning Frequency48Hz ~ 75Hz
Brightness500 cd/m2
Dynamic Contrast Ratio10,000:1

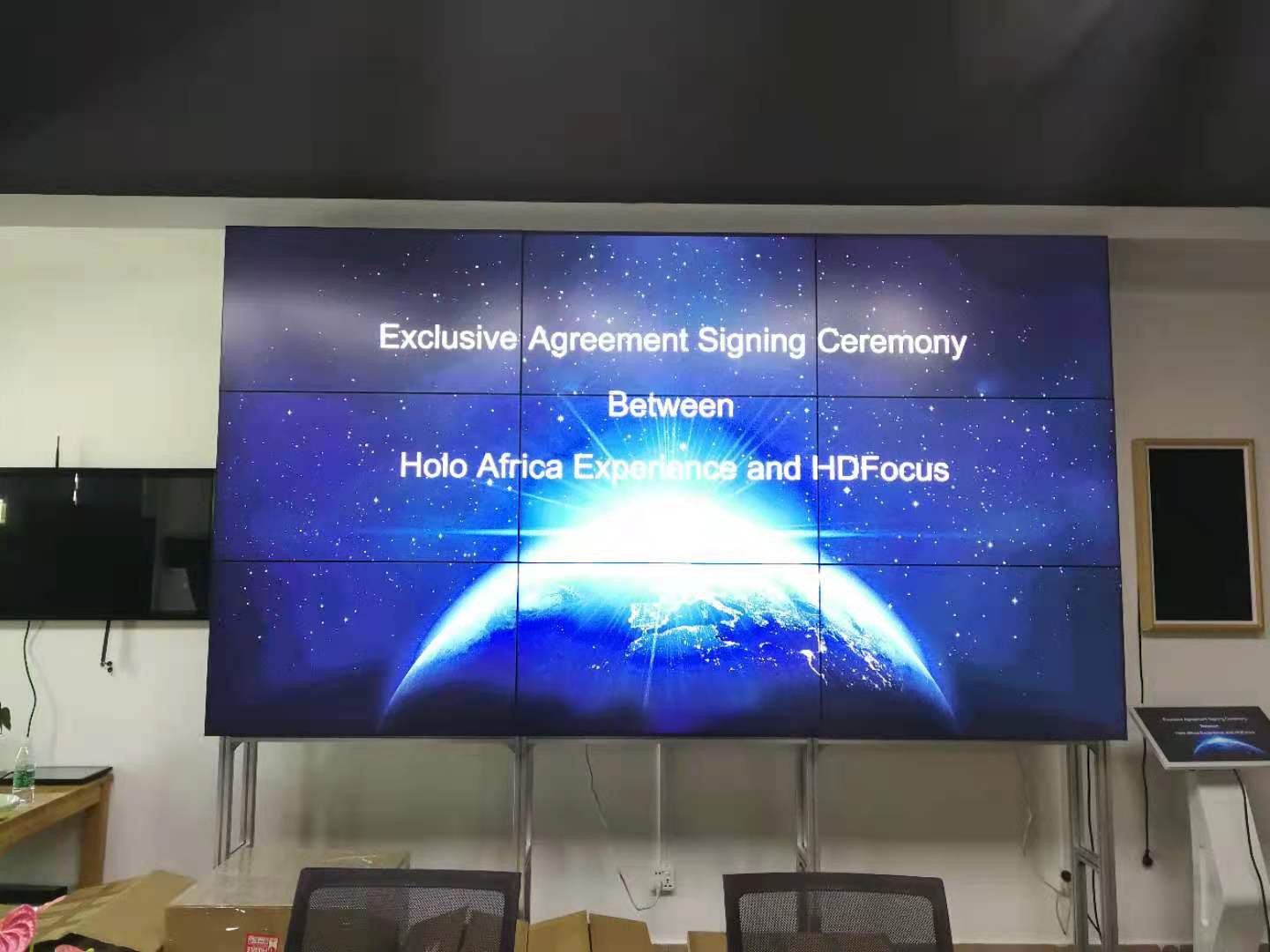

Case pictures after installation: 3*3 configuration, total 9 video wall displays:
Our HDFocus 3x3 video wall for shopping mall delivers a continuously immersive and engaging viewing
experience through high-performing readability and durability. Designed for 24/7 continuous operation in
challenging environments. The displays offer 500 nit brightness to broadcast vivid, highly legible images
and visual messaging in various lighting conditions.This solution can be used in various applications,
such as transportation terminals, shopping malls, office lobbies and control rooms.

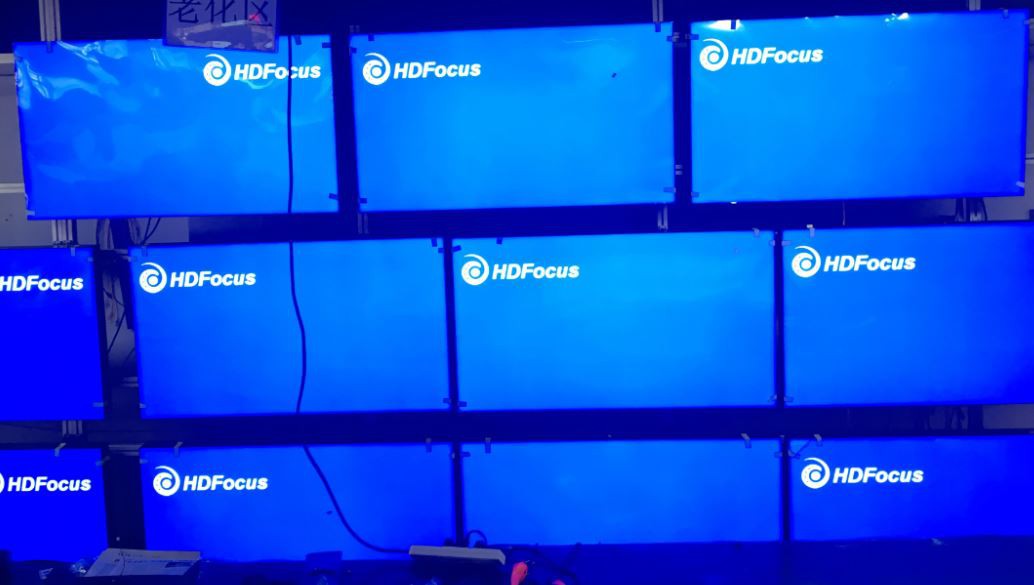

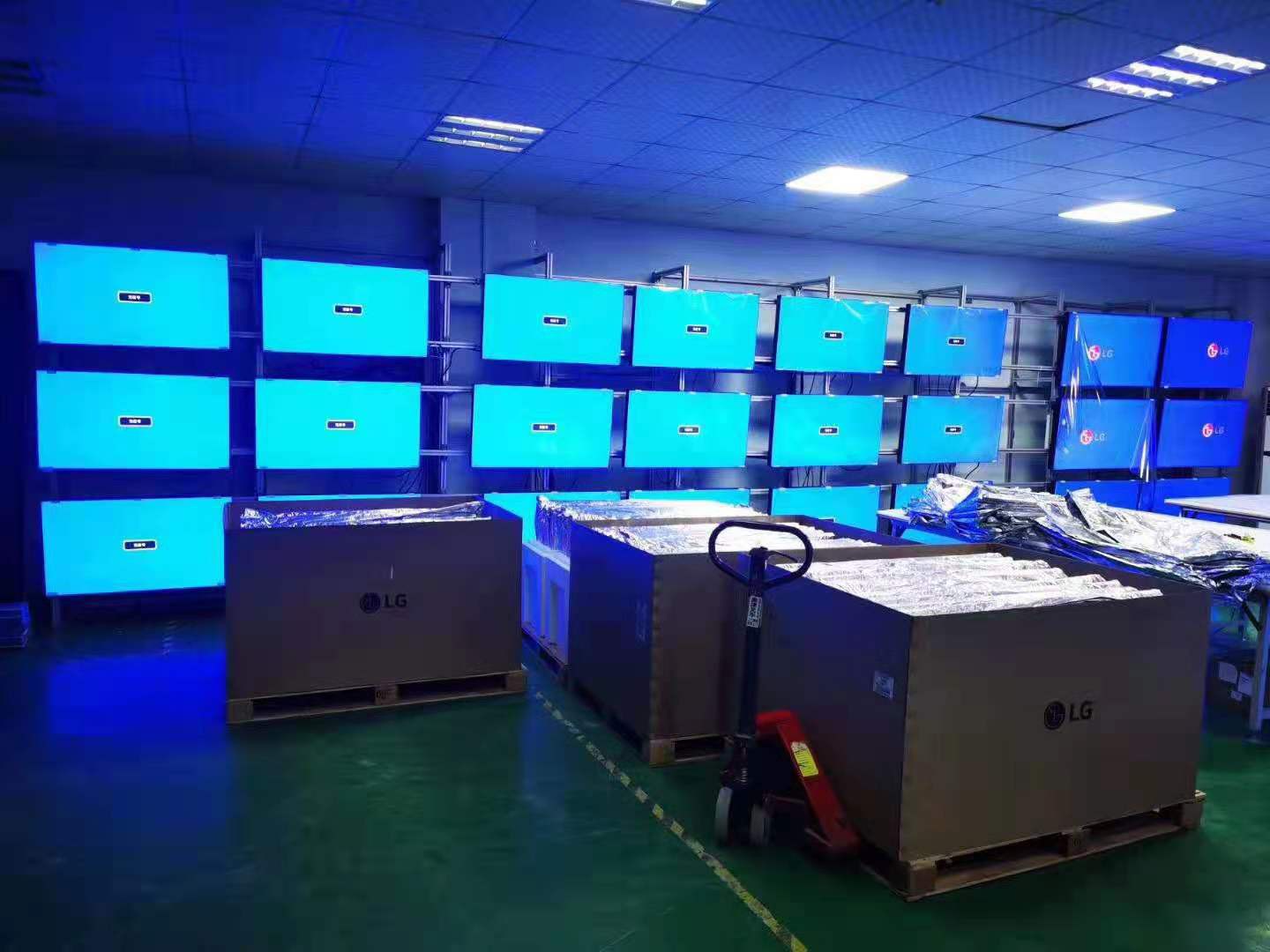

Our production pictures in our production lines:
