98'' Cinema Interactive Digital Whiteboard
We, HDFOCUS, is confident to offer total solutions with hardware and Interactive Digital Whiteboard software included. Available sizes of 55 inch, 65 inch, 75 inch, 86 inch and 98 inch serve for different application. HD-98I-T, is designed exclusively for business conference and education. As the...
We, HDFOCUS, is confident to offer total solutions with hardware and Interactive Digital Whiteboard software included.

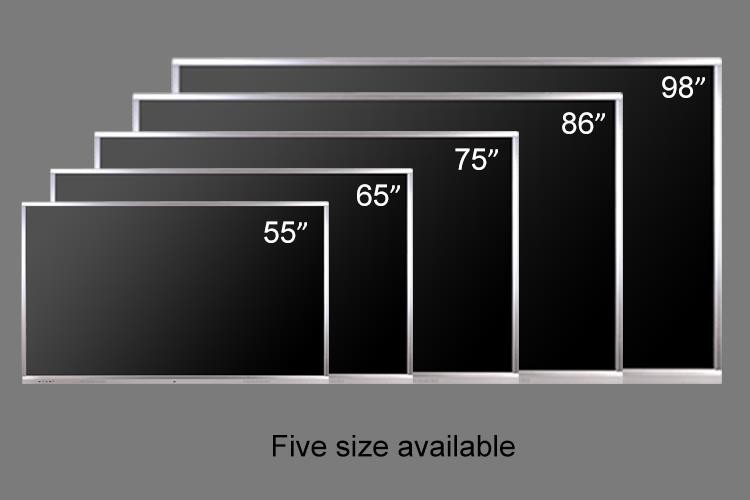

Available sizes of 55 inch, 65 inch, 75 inch, 86 inch and 98 inch serve for different application.
HD-98I-T, is designed exclusively for business conference and education. As the product of digitization, interactive whiteboard wins more marketing share by its smart solutions compared to traditional projector: audio and video as well as the written content on screen could be easily transmitted in real time. That's the charm of interactive whiteboard.
Please see the main features of the item as below:
✓ Excellent design with aluminum alloy edging;
✓ Brand new LG original panel with TFT LED backlight;
✓ Sensitive IR touch function with 10 points touch;
✓ Original brand new panel with 4K resolution;

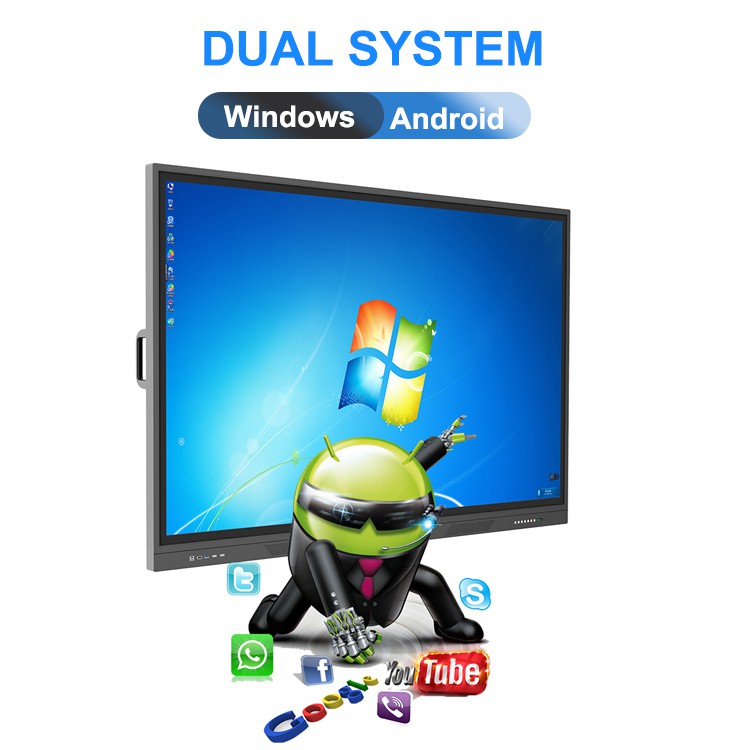

✓ Dual OS: Windows and Android OS;
✓ Built in professional Anti-Glare glass(optional);
✓ Built in Click&Share function from PC (optional);
✓ Support screen sharing from mobile devices;
✓ Windows 7, 8 and 10 trial version available;

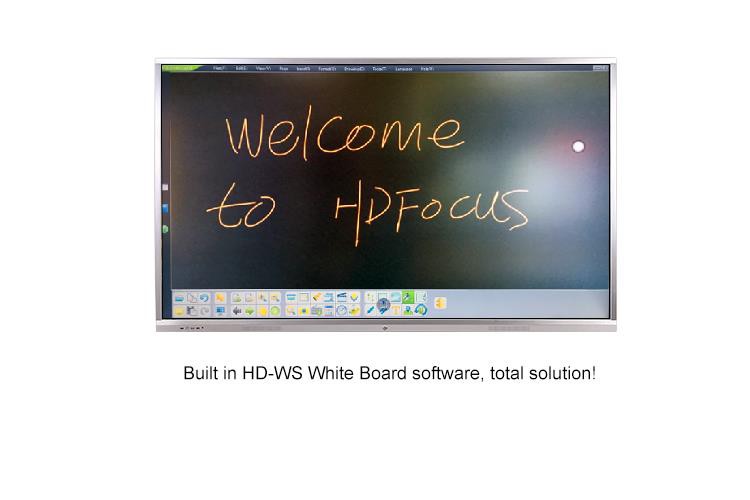

✓ Build in professional whiteboard software;
✓ Support Ethernet and WIFI connection;
✓ Industrial level design, support 24/7 working;
✓ CE&ROHS certified.
Product Specification
Display:
Display Screen | 98" size |
Panel Brand | LG |
Panel back light | TFT-LED |
Display Ratio | 16:9 |
Color | 1.06B, 72% NTSC |
Display area | 2158.85 × 1214.35 (H×V) mm |
Resolution | 3840*2160 （UHD） |
Brightness | 500cd/m2 |
Contrast | 4000:1 |
Response Time | 5ms |
View Angle | 178° left and right, up and down |
Life time | Over 50,000hrs |
Performance:
OPS PC CPU | Intel quad Core i7 CPU, 3.2G Hz, 4G RAM, 128G SSD |
Android CPU | ARM Cortex CPU，2G RAM WITH 16G Storage |
Memory | DDR3 4G for Windows PC; |
HDD | 128G SSD for Windows PC |
Main Board | Industrial board |
Graphic Card | Integrated graphics card, support UHD 4K resolution. |
Network Card | 10/100/1000M adaptive card |
WIFI | 802.11A/g/n(2.4/5GHZ) |
Windows OS | Windows 7, 8.1 and 10 trial version |
Android OS | Android 5.0 and above |

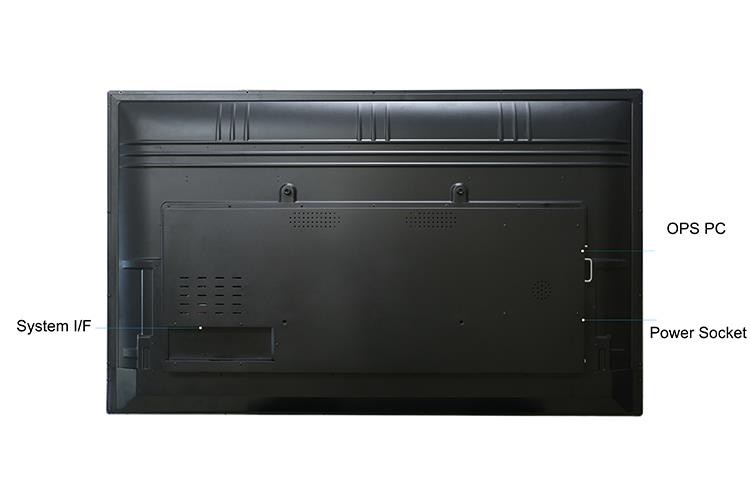

Interface:
USB | USB*4 |
COM | RS232 COM*1 |
HDMI Input | HDMI*3 |
AV Input | AV*1 |
VGA Input | VGA*1 |
MIC Audio Input | MIC Audio*1 |
HDMI Output | HDMI*1 |
VGA Output | VGA*1 |
AV Output | AV*1 |
Line Audio Output | Line*1 |
Touch USB Port | Touch USB Port*2 |
Network | RJ45*2, WIFI*2 |
Touch:
Touch Type | Infra-red |
Points | 10 points (can customize 20 points) |
Response Time | Less than 5ms |
Resolution | 32767 * 32767 |
Position Accuracy | ±1.5mm |
Communication | USB2.0 |
Life Time | Over 60,000,000 touches |
Whiteboard Software:
Dimension:

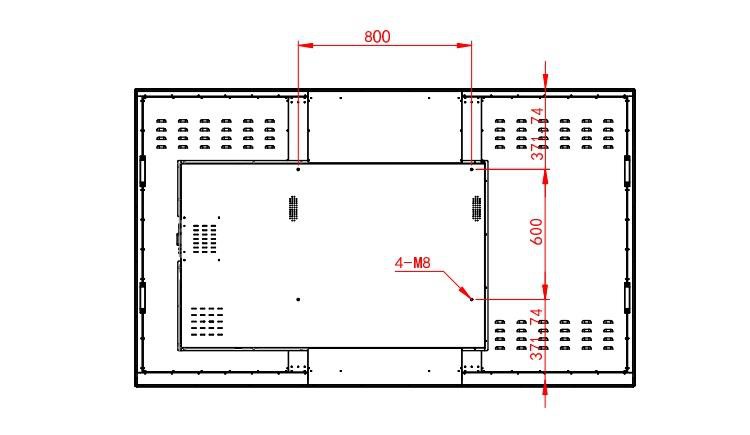

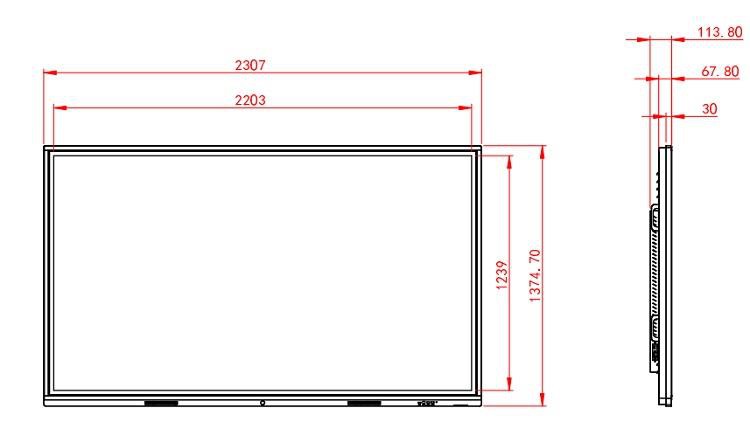

Dimension Drawing
Product Features
Advance
1. Large screen size and clear image height
At present, the conventional conference touch all-in-one machine on the market has dimensions of 55 inch, 65 inch, 70 inch, 84 inch, etc. the super large display screen can completely match or even exceed the display screen of the projector. Moreover, the resolution of the LCD screen is very high and the display screen is highly clear, which solves the problem that the projection screen of the projector is not clear.
2. Equipment integration, fast and convenient use

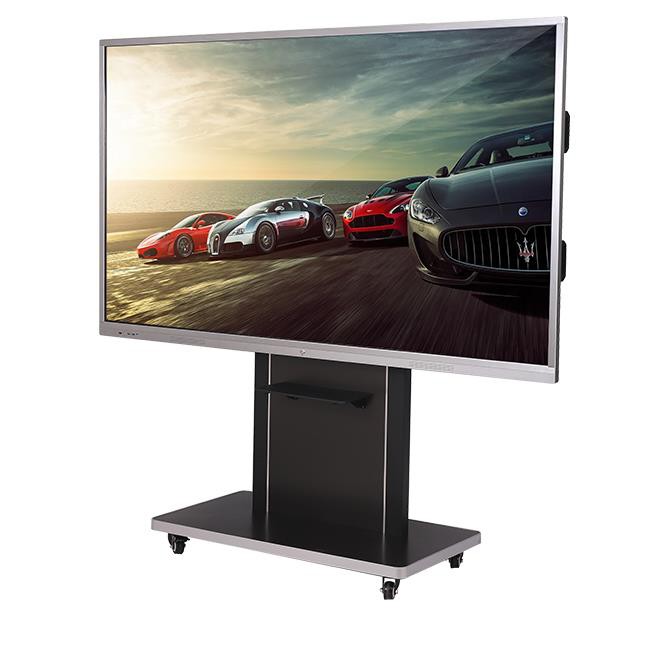

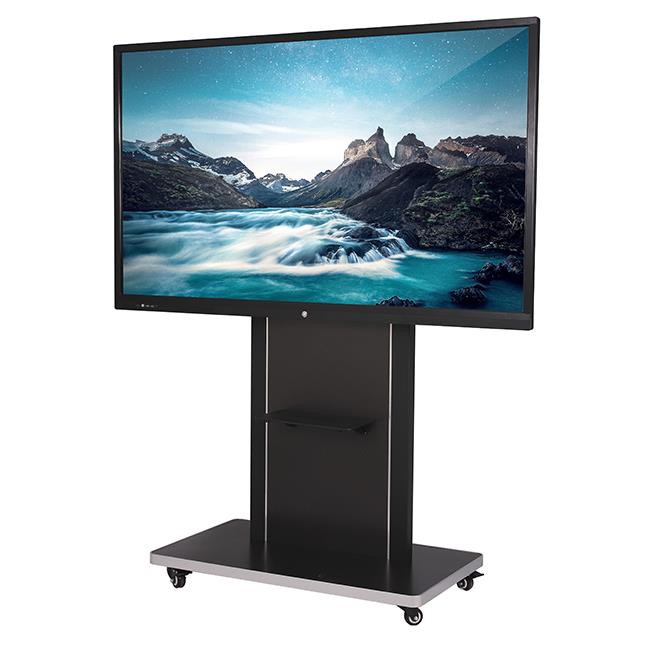

It integrates the functions of computer, TV, audio and other equipment into a whole. It is equipped with a variety of common conference tools such as electronic whiteboard writing, multimedia display, etc. it can smoothly play files such as PPT, word, Excel, flash, etc. it is also equipped with a floor type mobile bracket, which is convenient to move at any time.
Certificate
This product has passed the CE, RoHS and FCC certificate as the following:
FAQ:
Q: Sound equipment no sound
A: Adjust the volume knob; adjust the volume setting of the computer; check whether the audio signal cable is loose; check whether the sound card of the computer is set correctly; if it still cannot be eliminated, ask the professional maintenance personnel for maintenance.
Q: Common power failure causes the device to fail to start
A: Please check whether the power input of the touch all-in-one machine is normal, and check whether the fuse of the power supply has common faults.
The above are the common failure reasons and solutions of the office conference touch all-in-one machine. I hope they can help you. If the office meeting touch all-in-one machine is abnormal and does not know how to repair it, it is recommended to select professionals or manufacturers to carry out after-sales solutions
