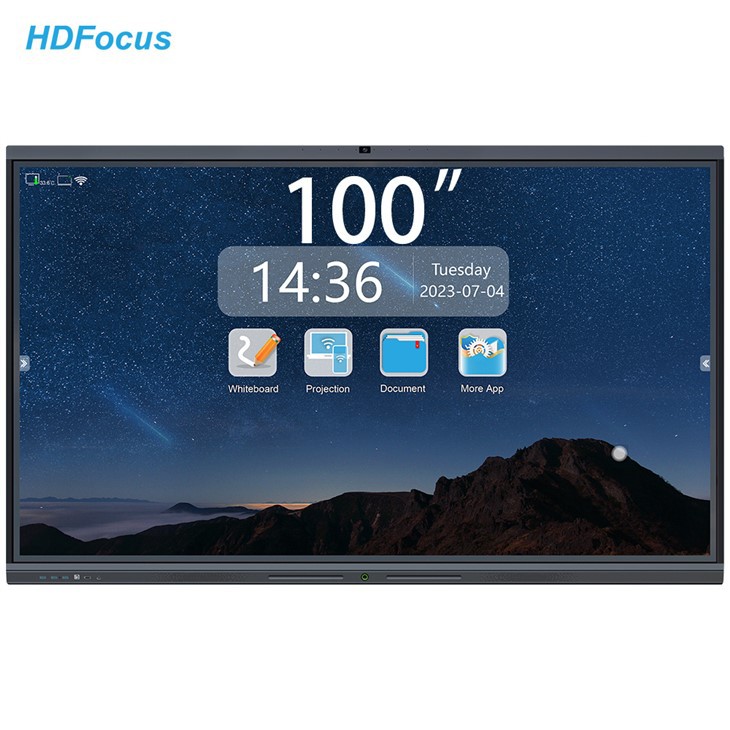

100 Inch LCD Interactive Board

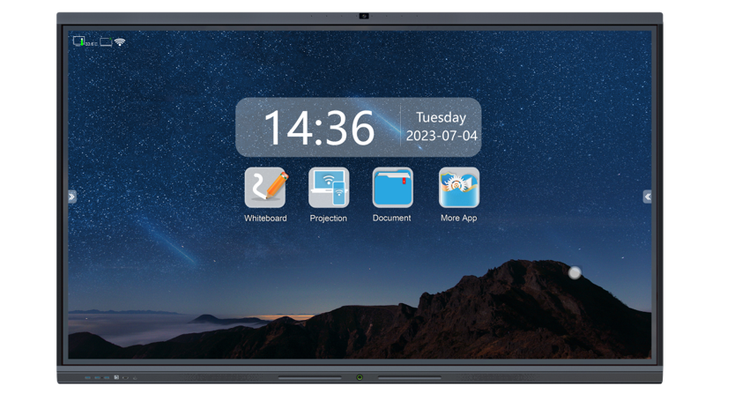

Product Outlook

Main Features

Model: HD-100I-T

√ Excellent slim design with aluminum alloy edging, matte grey and black color;
√ Ultra high 4K resolution and new original panel with TFT LED backlight;
√ Sensitive 20 points IR touch;
√ Built in professional Anti-Glare glass;
√ Built in wireless projection and reverse touch control, support mobile and PC;
√ EShare wireless transmitter for wireless projection, plug and play (optional);
√ Windows PC can support Webcast function, PC can install one Eshare software, then can wireless project screen to interactive board screen, and can reverse touch control;

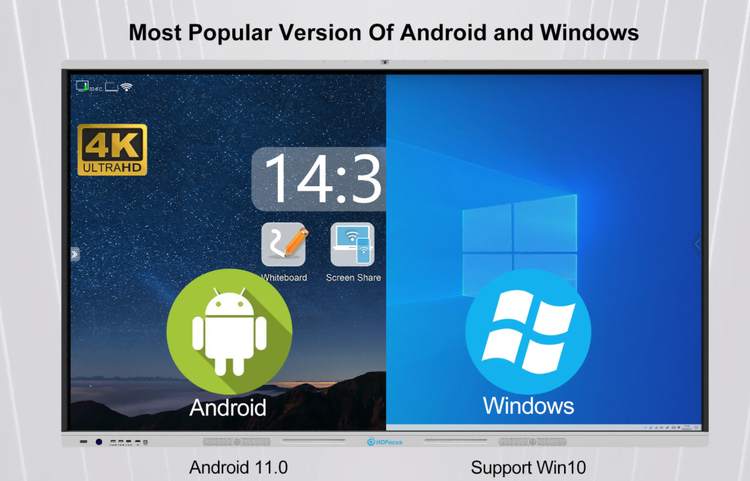

√ Dual OS: Android OS and Windows OS available;
√ Built in professional OPS computer, can customize CPU, RAM and storage(optional);
√ Built in professional whiteboard software, full 4K resolution user interface and GIF icons;
√ Built in annotation function, can annotate on both Android and Windows OS, support QR scanning to download to mobile phone;
√ Magnetic touch pen can be absorbed on the board’s front frame;
√ VC module: 48M pixels camera or auto tracking with 8 sound arrays system;
√ CE,ROHS, TELEC, PSE, FCC, HDMI and ENERGY STAR certified;
√ ISO9001 and ISO14001 certified.



Display

Display Screen	100”
Panel back light	TFT-LCD Module with DLED backlight
Panel Protection	Anti-Glare glass
Hardness	7H
Aspect Ratio	16:9
Color	1.07b colors (8 bit)
Display area	2157*1212.4mm
Resolution	3840*2160
Brightness	450cd/m2
Contrast	1200:1
Response Time	8ms
View Angle	178° left and right, up and down
Life	Over 60,000 hours









































IR Touch

Touch Type	Infra-red
Points	20 points
Response Time	Less than 5ms
Resolution	32767 * 32767
Position Accuracy	±1mm
Communication	USB2.0
Touch Way	Pen, Finger or other light-proof items
Life Time	Over 60,000,000 touches





























Dual OS Configuration:

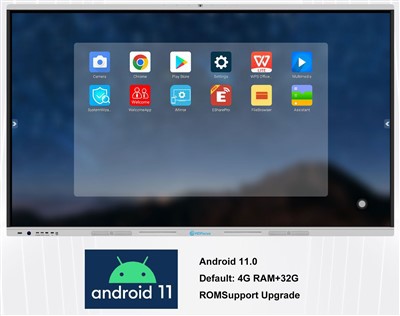

Android Configuration

CPU	Quad-core ARM Cortex-A55
GPU	Mali-G52 MP2(2EE)
RAM	8GB DDR4
ROM	64G EMMC
WIFI	IEEE802.11an 2.4/5 GHz
Hotspot	IEEE802.11 a/b/g/n Dual Band 2.4GHz/5 GHz
Bluetooth	Support, can receive signal up to 12M.
Android OS	Android 11.0



























Windows OPS Configuration

Client can choose from the Pro, Max or Maxplus version for the OPS, we also can customize other configurations,

pls check with sales separately.

Intel Comet Lake-H 10th Gen processors	I7-10750H
DDR4/RAM	8G
Hard disk/SSD	512G
Graphics card	Intel® UHD Graphics
WIFI & BT	IEEE802.11an 2.4GHz+5G, BT4.2
Windows OS	Windows 8.1/10/11 trial version, Linux



Input/Output Interface

Android I/O Interface

Front Port	USB*3
	HDMI IN*1
	TOUCH*1
	TYPE-C*1 (Full function TYPE C, support data transfer, signal transfer, power charging)
Rear Input Port	USB*2
	HDMI2.0 IN*2
	RS232*1
	RJ45 IN*1
	VGA IN*1
	VGA Audio IN*1
	MIC IN*1
	AV IN*1
	DP IN*1
	TF card slot*1
Rear Output Port	AV OUT*1
	RJ45 OUT*1
	Touch*1
	Earphone*1
	SPDIF OUT*1(Optical OUT port optional)
Bluetooth/WIFI	1x 2.4G built-in module,1x 5G built-in module
	Bluetooth5.0*1



Windows OPS I/O Interface, based on 10th Generation OPS (Only available with OPS built in,

for customized OPS, the I/O interfaces are different)

DP Output	DP*1
HDMI Output	HDMI*1
MIC IN	MIC*1
RJ45 Port	RJ45*1
USB Port	USB 3.0*6
Type-C	Type-C*1
LINE-OUT	LINE-OUT*1
Power	Power*1
Restore	Restore*1



Accessories

Remote Controller	Remote controller*1
Wall Mount Racker	Racker*1
Screen Projector	HDT1*1
Touch Pen	Free Touch Pen*2
User Manual	User Manual*1
Power cable	Power cable*1, HDMI cable*1, Touch cable*1



Others

Net Dimension	2218.24*1318.1*100.81mm
Package Dimension	2257*215*1478mm
Net Weight	89KG
Gross Weight	110KG
Speaker	2*15W speakers (Front)
VESA	400*1000mm
Color	Matte gray and Black
Voltage	100 V ~ 240 V, 50-60 Hz
Power	≤ 650W
Working Temperature	-10~55 ℃

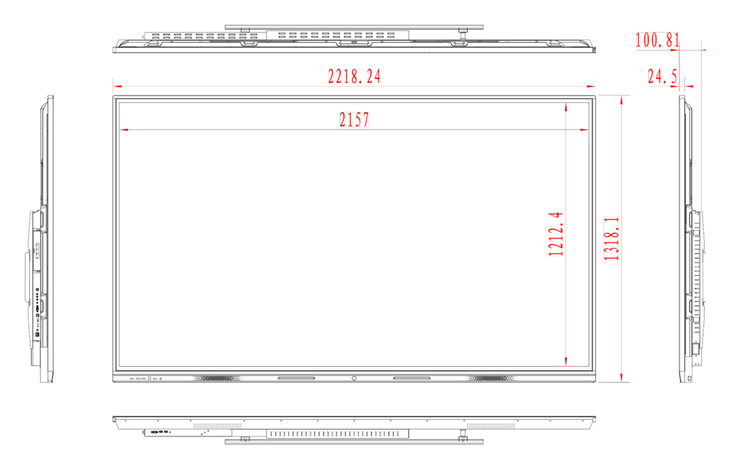

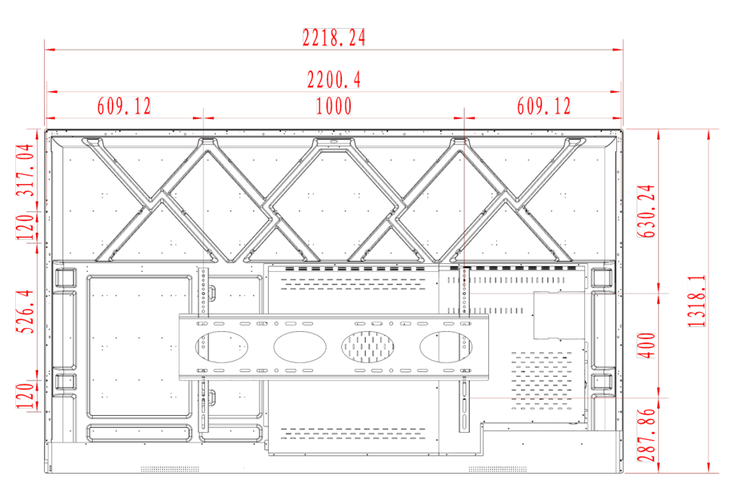

Detailed Dimension Drawing

Front and Side

White Board Software

Main features:

√ Professional whiteboard software and wireless sharing software under Android OS;
√ It supports gesture recognition, supports three fingers touch can call floating menu following, five fingers touch can call power on/off screen; and can be recognized as pen and erasing function by changing the touch area. It also supports erasing while writing;
√ Support mobile phone wireless project, and reverse control;
√ Built in eraser function, support hand gesture erasing;
√ Annotation function, can annotate on both Android and Windows OS, and the annotation content support QR scanning to download to mobile phone or can be saved locally in the interactive board;
√ QR code sharing, can download the content by QR scanning directly;
√ Recording both the audio and pictures in MP4 format; Support wireless projection function, both mobile and PC;
√ It supports the intelligent U disk lock function, the whole machine can be set to touch and key lock;
√ Intelligent character recognition of the hand writing words and change to the standard English fonts, and support Google search the the hand writing words through web browser by opening a new window;
√ Support half screen mode, pull down the upper part of the Windows display screen to the lower part of the display screen, and you can still operate the Windows system normally by touching.

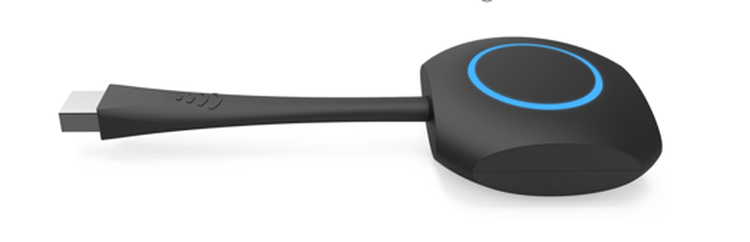

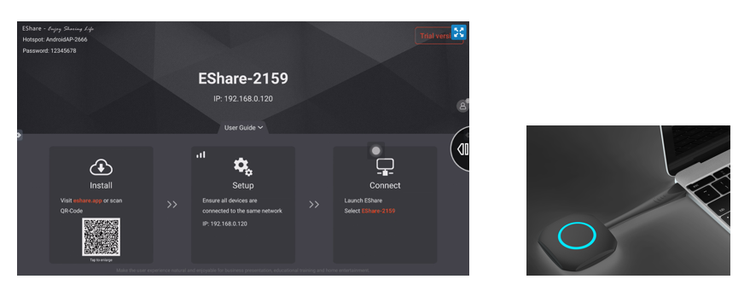

EShare Wireless Transmitter

Model: HDT1

√ Wireless projection, support project the PC signal to the interactive board, and reverse control;
√ Featured with ultra-low power consumption;
√ Classic design with plastic case and LED lighting;
√ Plug and play, no more software need to install;
√ Support dual band of 2.4G&5.8G,more stable and fast transfer;
√ Transfer audio and video up to 1080P resolution and 30FPS.

Detailed Specification
Interface	USB2.0 (5V/500mA)
Supported OS	Windows 7 and above, macOS 10.10 and above
PC Minimum Spec	Frequency: 1.8GHz and above; RAM: 2G and above
Input Resolution	Input resolution support up to 3840*2160
Project Resolution	1080P@25~30fps
Audio Transfer	44.1KHz/16bit, stereo audio
Wireless Project	Plug and play, auto run, no need to install any software
Wireless Protocol	IEEE 802.11ac / 802.11n
Wireless Band	2.4G&5.8G
Wireless Distance	Maximum 35M
Transmission Delay	Less than 50ms
Reverse Touch Control	Reverse touch control, maximum support 10 points touch
Extended Screen Transfer	Windows 10 PC can wireless transfer extend screen













































EShare Wireless Solution Control Software

Control Software Main Features
File Push Function	Support push picture, video, audio and Office file to locally display
File upload function	Upload any files wirelessly to the interactive board, users can download this file and display in the screen
Intelligent control	Intelligent control function: Wireless Touch Mouse, air mouse, Wireless keyboard Voice Handwriting input, Wireless Touchpad, Remote control for common keys(Home Menu Back Vol+/-…etc.)
Wireless camera	Support wireless camera
Annotation	Mobile phone and Windows PC can do wireless annotation to the interactive board screen.
TV Mirror	The interactive board screen can be shared to a mobile device wirelessly, and this mobile device can reverse touch control interactive board screen simultaneously
Split Screen Display	Can wireless project 9 mobile devices signals to the interactive board screen with 9 split screens display
Moderator Control	The moderator can control the permissions of the client devices, such as screen transfer, reverse screen transfer, touch, annotation and exclusive screen display
Airplay	Compatible with AirPlay protocol, any iOS devices can use AirPlay function to wireless project screen without install any APP
DLNA Protocol	Compatible with DLNA protocol, any App which support DLNA protocol can wireless project screen to the interactive board screen
iOS Project	iOS devices can wireless project screen to interactive board screen, and can reverse touch control the iOS devices through the interactive board screen
Android Project	Android OS devices can wireless project screen to interactive board screen, and can reverse touch control the Android OS devices through the interactive board screen
Extended Screen Project	Wireless Dongle terminal can do extended screen wireless transfer for the Windows 10 devices
Screen Group Display	Support the simultaneous transmission of one single signal to multiple interactive board screens for synchronous display with the wireless receiver product

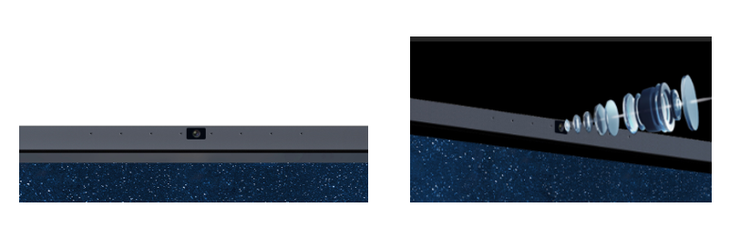

VC Module

VC module is use together with video conference software, such as ZOOM

Camera	48M pixels
Number of Arrays	8 microphone sound arrays system
Noise Cancellation	Support noise cancellation
Voice Pickup range	Up to 10M

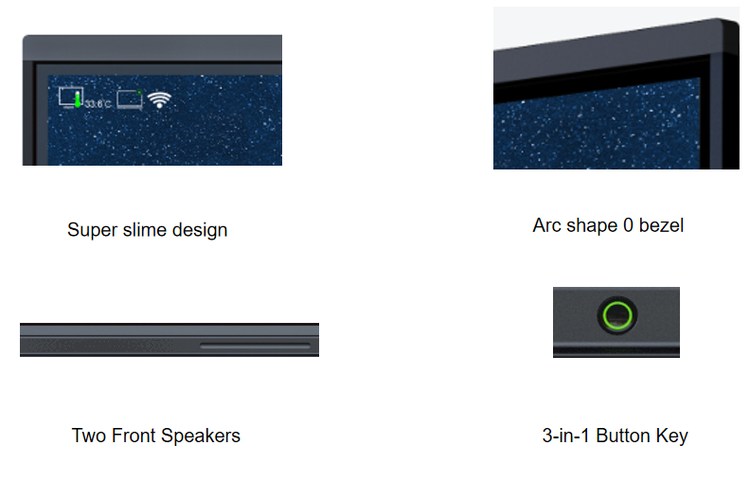

Product Details Pictures

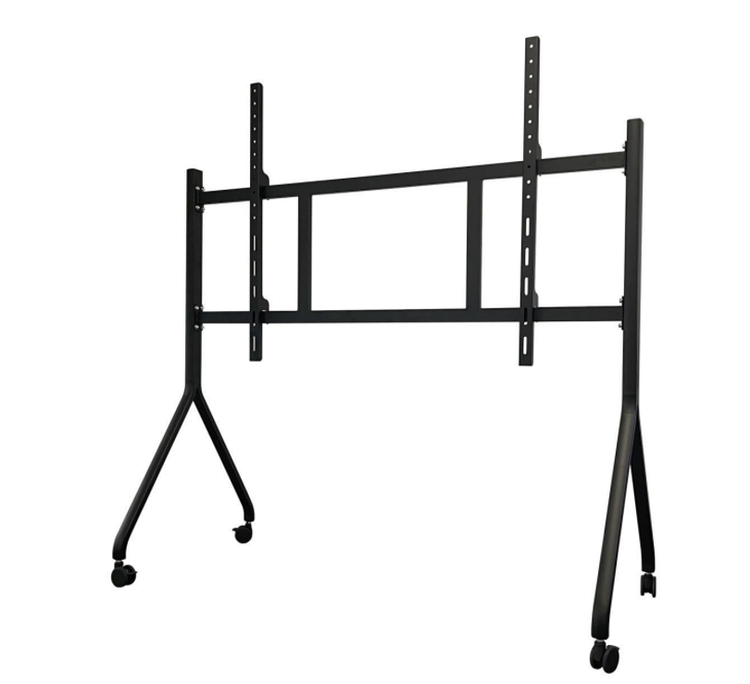

Floorstanding Rack

We offer free Wall Mounted Rack as free accessories.

Model	HD04(0818)
Support Size	100”,105”,110”
