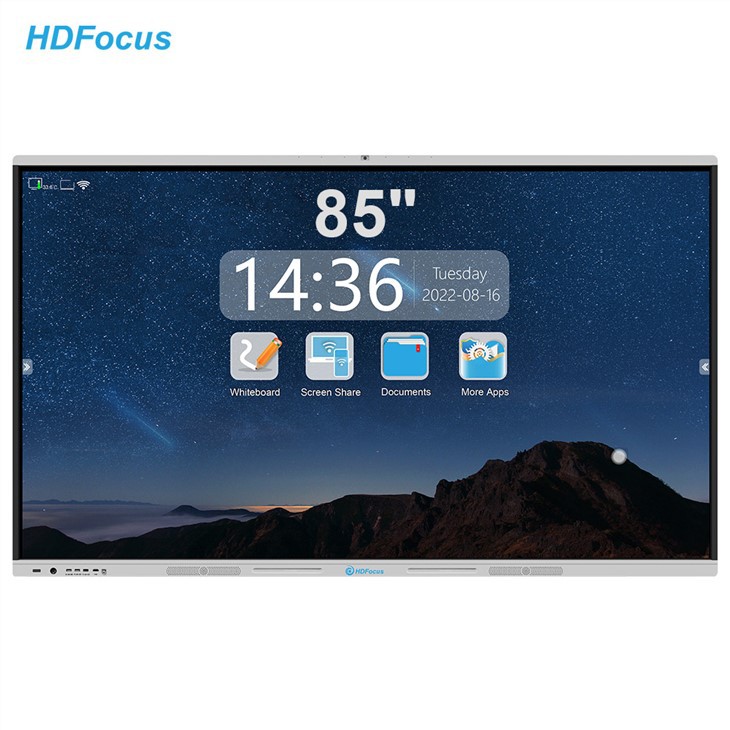

85 Inch Interactive Board In The Meeting Room
From the administrative meeting room to the kindergarten classroom, HDFocus 86 inch interactive flat panel can achieve unlimited collaboration and innovation. This next-generation digital whiteboard is designed to help teams connect, collaborate and create, accurately meet your needs, and drive your ideas forward.

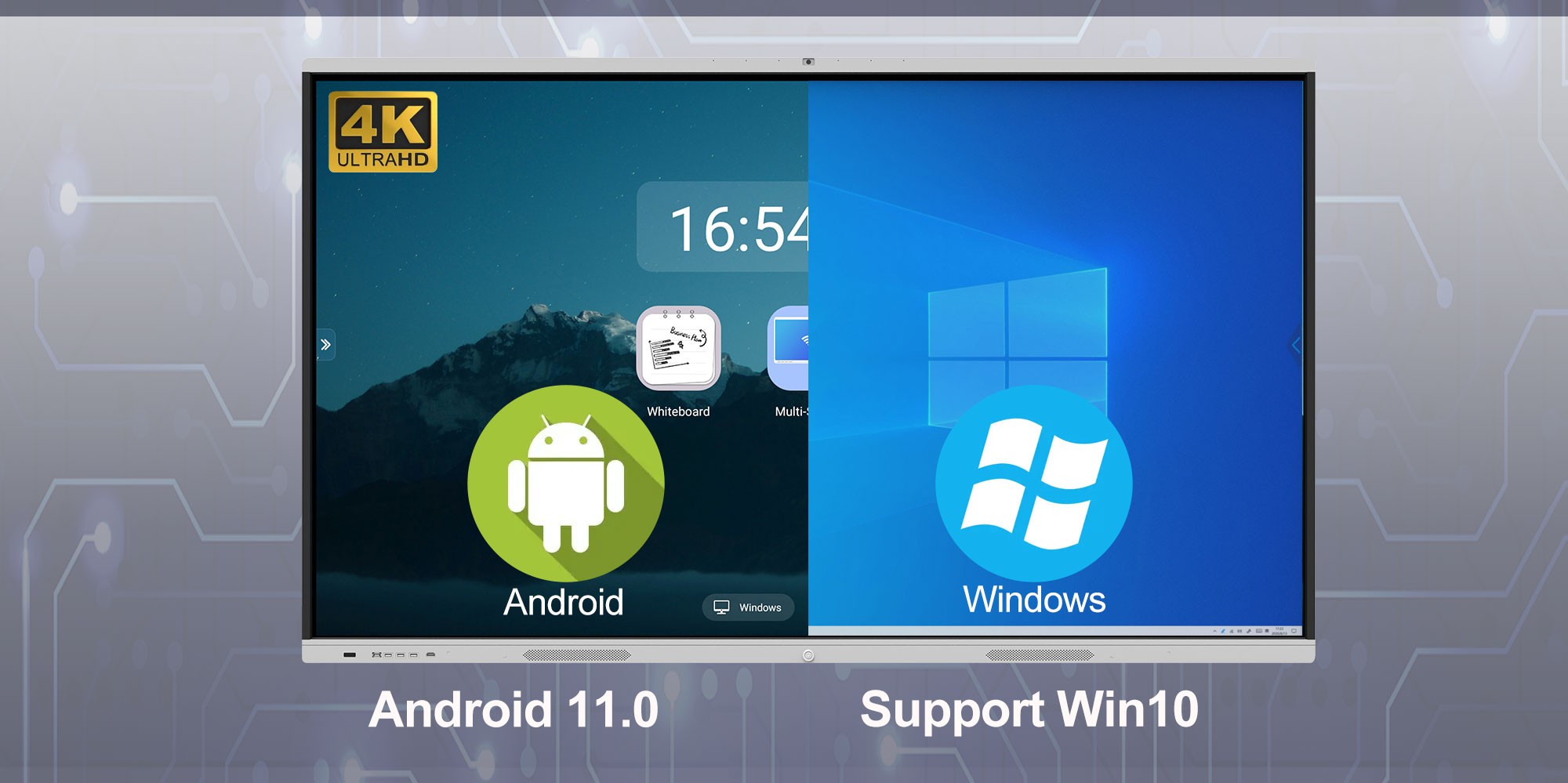

85'' interactive flat panel can bulit in dual os
Main Features:
Moderator Control:
The moderator can control the permissions of the client devices, such as screen transfer, reverse screen transfer,
touch, annotation and exclusive screen display
Airplay:
Compatible with AirPlay protocol, any iOS devices can use AirPlay function to wireless project screen without install any APP
DLNA Protocol:
Compatible with DLNA protocol, any App which support DLNA protocol can
wireless project screen to the interactive board screen
iOS Project:
iOS devices can wireless project screen to interactive board screen, and can
reverse touch control the iOS devices through the interactive board screen
Android Project:
Android OS devices can wireless project screen to interactive board screen, and can reverse touch control the Android
OS devices through the interactive board screen
Extended Screen Project:
Wireless Dongle terminal can do extended screen wireless transfer for the
Windows 10 devices
Screen Group Display:
Support the simultaneous transmission of one single signal to multiple interactive board screens for
synchronous display with the wireless receiver product
HD anti-glare screen
4K 178° Viewing Angle (Optional)
Product Specification
Display:
Display Screen | 85" LG brand |
Panel back light | TFT-LED |
Display Ratio | 16:9 |
Color | 10bit（16.77Million） |
Display area | 1895.04*1065.96mm |
Resolution | 3840*2160 （UHD） |
Brightness | 500cd/m2 |
Contrast | 4000:1 |
Response Time | 5ms |
View Angle | 178° left and right, up and down |
Life time | Over 50,000hrs |
Performance:
OPS PC CPU | Windows Max: Intel quad Core i5 CPU, 3.2G Hz, 4G RAM/128G SSD (can customize) |
Android CPU | ARM Cortex A53/1.5 GHz/2G RAM WITH 16G SD card |
Memory | Kingston DDR 4G for Windows PC; |
HDD | 128G SSD for Windows PC |
Main Board | Industrial board |
Graphic Card | Integrated Graphics Card, Support UHD 4K Resolution. |
Network Card | 10/100/1000M adaptive card |
WIFI | 802.11A/g/n(2.4/5GHZ) |
Windows OS | Windows 7,8.1 and 10 trial version; |
Android OS | Android 5.0 and above |
Interface:
USB | USB*4 |
COM | RS232 COM*1 |
HDMI Input | HDMI*3 |
AV Input | AV*1 |
VGA Input | VGA*1 |
MIC Audio Input | MIC Audio*1 |
HDMI Output | HDMI*1 |
VGA Output | VGA*1 |
AV Output | AV*1 |
Line Audio Output | Line*1 |
Touch USB Port | Touch USB Port*2 |
Network | RJ45*2, WIFI*2 |
Touch:
Touch Type | Infra-red |
Points | 10 points (can customize 20 points) |
Response Time | Less than 5ms |
Resolution | 32767 * 32767 |
Position Accuracy | ±1.5mm |
Communication | USB2.0 |
Life Time | Over 60,000,000 touches |

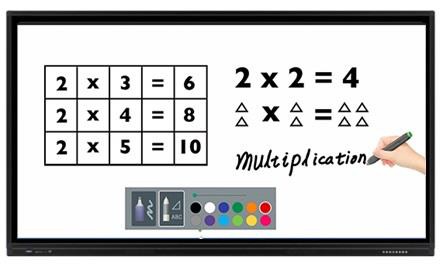

Whiteboard Software:
IR touch support touch by stylus or finger，Touch by finger，Touch by stylus，Touch by finger and stylus sync
Stylus magnet to the interactive flat panel , don't need any tool holders，One click change different colors，
unlimited，Don't need any tool holders with elegant design

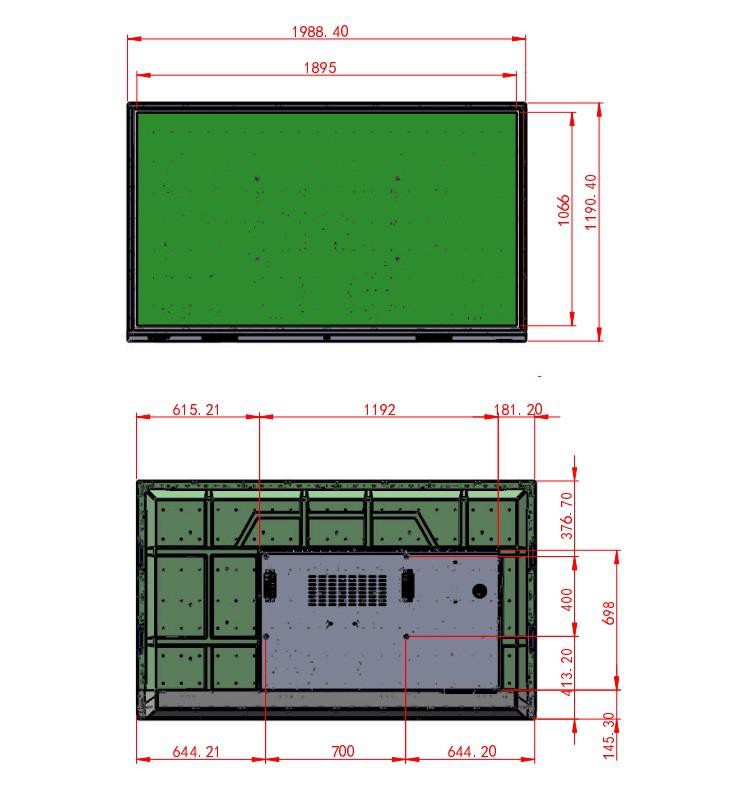

Dimension:
Product Features
About Us

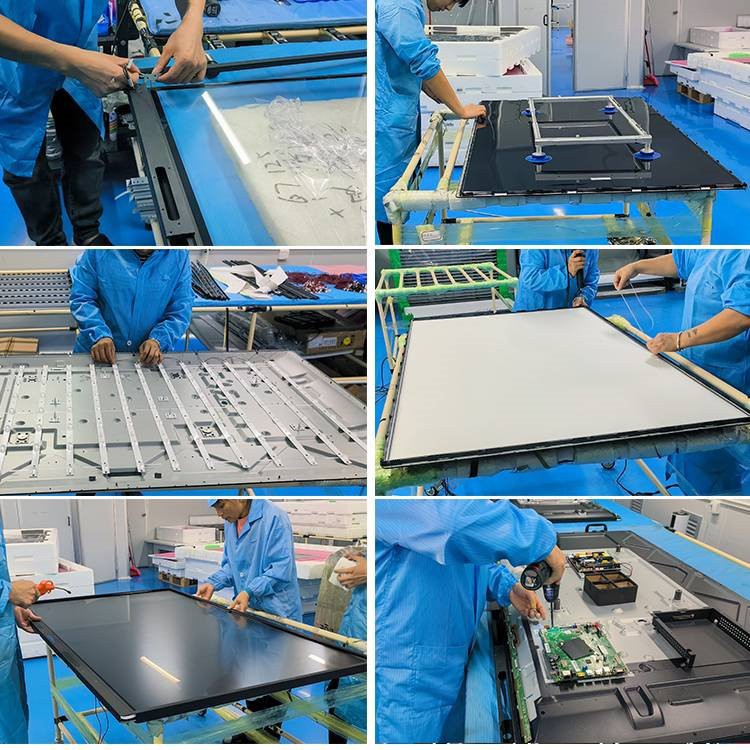

Shenzhen HDFocus Technology Co., Ltd has been a qualified maker of digital signs for over ten years. Now,
HDFocus is the SKA Supplier, and it also has the highest credit rating on Alibaba, AAA.:
Our facility is ISO 9001 certified and has achieved the authoritative Energy Star certification.
To sum up our journey, our products have been exported to more than 80 countries around the world,
and are very popular in all countries and markets. And our products have passed CCC, CE, FCC, RoHS,
IP65, IP66 and other certifications. Currently, HDFocus can be customized with interactive displays
ranging from 55 to 110 inches. If you have any business needs, feel free to contact us, there will be
a professional sales consultant team to provide solutions for you.
OEM, ODM interactive flat panel
We support various customized cooperation modes, software customization, logo customization,
hardware customization.
We have a good delivery ability, can deliver on the same day, and can deliver within 7-30 days for
customized proofreading processing. We can customize a variety of solutions according to your
needs and look forward to cooperating with you.
