21.5 Inch Touch Screen Self-Service Meal
Touch screen self-service meal，Ordering machine hardware matchingCatering operations with buffet food t local cashier as the core to enhance the efficiency of the restaurant...
Product Details

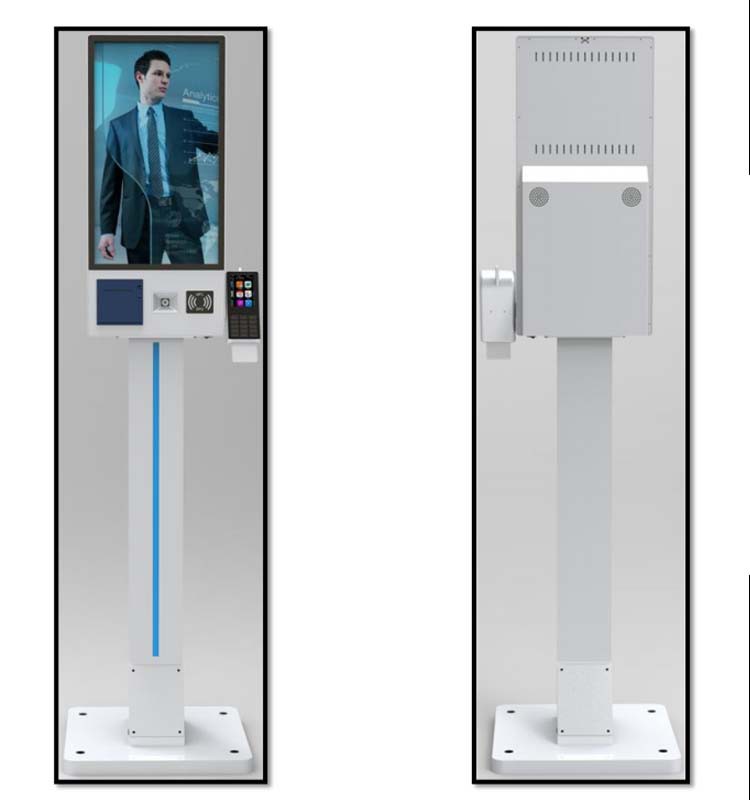

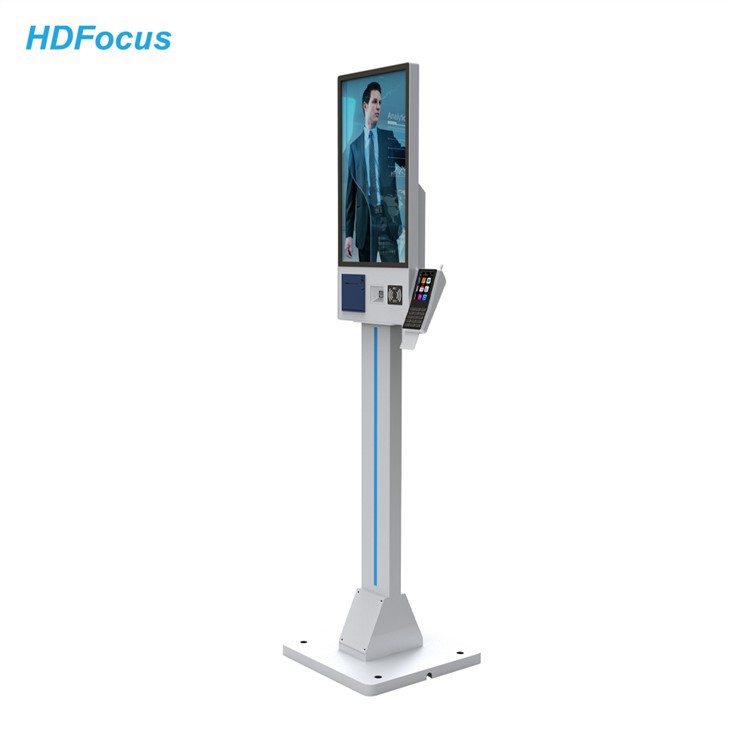

Self service kiosk
Product basic function introduction
✓ Excellent design with unique shape, self ordering solution;
✓ 21.5” brand new original panel with LED backlight;
✓ Support full HD 1920*1080P resolution;
✓ Support Android OS (Can customize Windows OS);
✓ Sensitive 10 points capacitive touch;
✓ Built in 58mm thermal printer;
✓ Built in QR code scanner;
✓ Built in POS terminal slot;
✓ Support HD-DS digital signage software, as a total solution;
✓ Support WIFI and RJ45 network connection;
✓ Industrial level design, support 24/7 working;
✓ CE*ROHS certified.
Product Parameters
Display：
| Model | HD-215U-T Windows Pro |
|
Display Panel
|
21.5” LCD screen with LED backlight
|
|
Display Ratio
|
16:9
|
|
Color
|
16.77M colors
|
|
Display Area
|
476.064(H)*267.786(V)mm
|
|
Resolution
|
1920*1080
|
|
Brightness
|
450cd/m2
|
|
Contrast
|
≥ 1000:1
|
|
View Angle
|
178°left and right, up and down
|
|
Points Distance
|
0.282(H)*0.282(V)mm
|
Motherboard Performance：
| Windows Max | Intel® Core Dual i3 CPU, 4th Generation |
| RAM | DDR 3, 4G RAM |
| SSD | 128G SSD (can expand) |
| Main Board | Industrial board |
| Network Port | 10/100M/1000M adaptive port |
| WIFI | Support WIFI dual band 2.4G/5.2G |
| OS | Windows 7, 8.1, 10,11 trial version; Linux OS; |
Printer：
|
Type
|
Thermal printer 58mm
|
|
Print Width
|
384 dots
|
|
Resolution
|
203DPI
|
|
Print Speed
|
100mm/s(max)
|
|
Paper Width
|
58 ± 0.5 mm
|
|
Paper Thickness
|
56~105μm
|
|
Interface Type
|
RS232 serial interface
|
|
Life Time
|
1 million times
|
Product size chart：
HD-DS Digital Signage Software
Program Interface Edited by HD-DS Software
Self ordering Touch screen Freestanding payment interactive self service ordering Kioskshopping mall advertising kiosks
