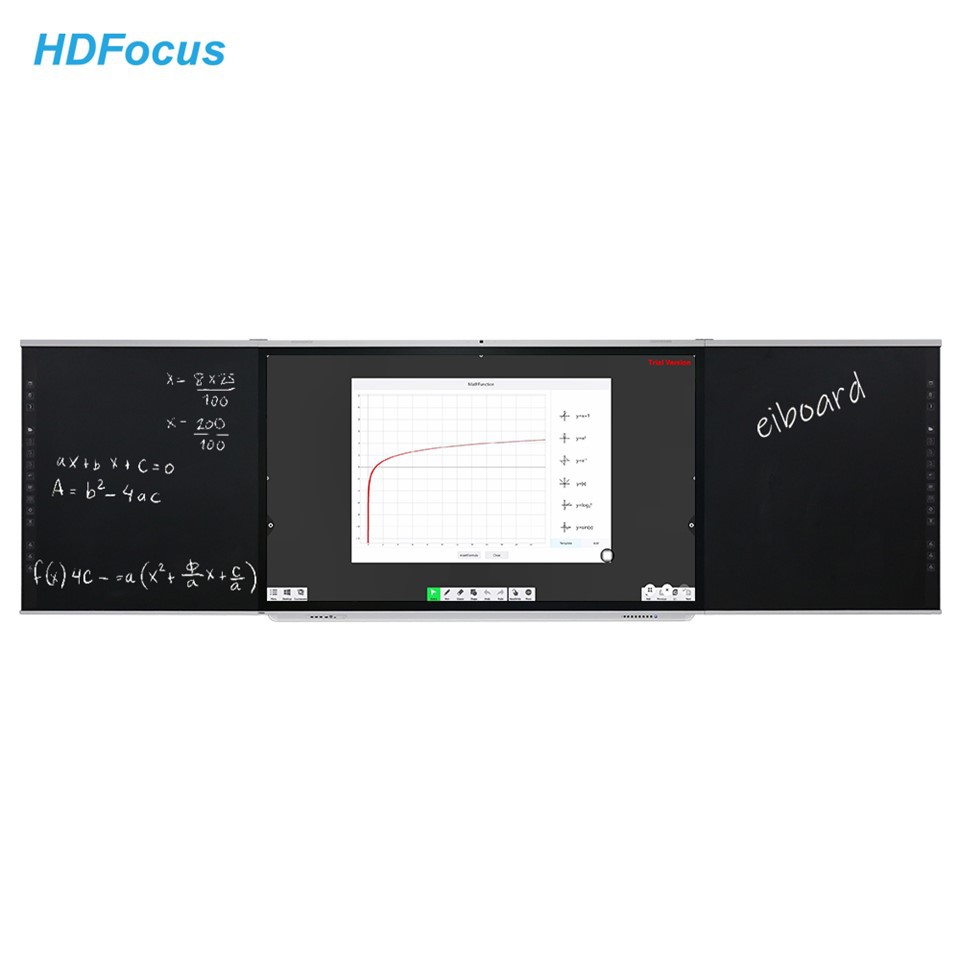

86 Inch Intelligent Smart Nano Blackboard
Intelligent smart nano blackboard is a new generation of education equipment, integrated with an HD resolution display, touch function, blackboard teaching, and writing; built-in Windows and Android OS can meet different teaching circumstances......

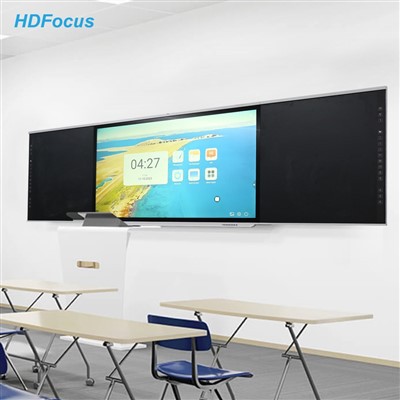

Intelligent smart nano blackboard is a new generation of education equipment, integrated with HD resolution display, touch function, blackboard teaching and writing; built in Windows and Android OS can meet different teaching circumstances. Besides, it supported various writing tools such as chalk, liquid pen etc. The function, which is switching between screen and blackboard, can support teaching application changes. Pur plane appearance decorates the structure of traditional push-pull blackboards, which greatly improves teachers' teaching feelings and demonstration effect.
|
Main function |
Support multiple image signal inputs (HDMI,AV, VGA),etc； Support 10-point touch operation, which can be configured with remote control operation； USB multimedia file playback function (support multiple file formats)； Android 6.0 system. |
| Touch function |

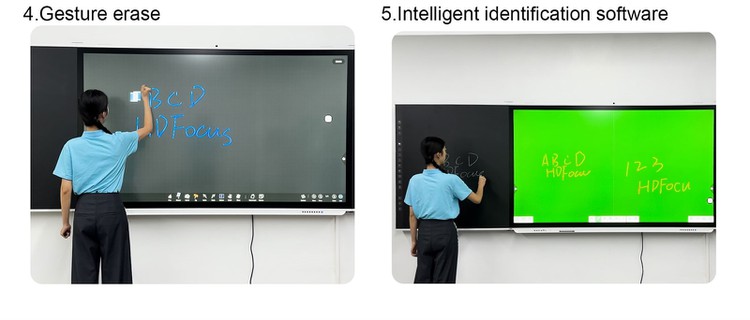

Support multiple points touch, sensitive and fluently； Support a variety of shortcuts: drop-down half-screen touch operation, home icon ( Support switch backlight operation by five-finger； Support image zoom in, zoom out and rotation； Support touch function is available after switching signal sources Support can through touch control signal format, volume and the others when the display state of each signal format exist, |
| others |

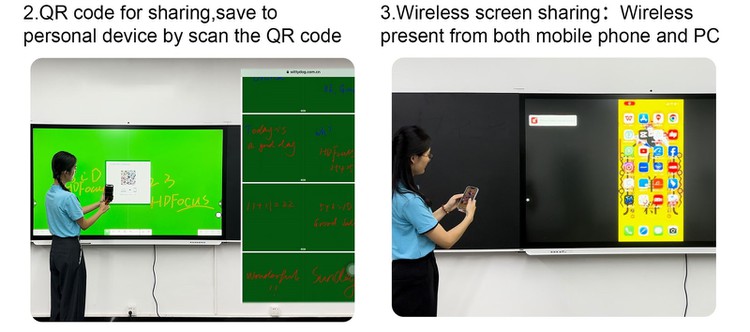

Sleep Timing and Shutdown Memory; Supporting remote control instead of keyboard, F1 ~ F12 button function available, control TV Boot function, TV/computer mode switching, multiple signal source selection; Support the function such as menu button operation、return、homepage、menu operation, task preview, channel switching, volume adjustment, brightness adjustment, annotation, screenshot, fast electronic whiteboard operation, etc. Support one-button lock function; Support wireless 2.4/5G WIFI, wired LAN; Support notification and switch signal automatically; Support one key switch computer, TV, computer reset and homepage button functions; Support start up by scanning the card（option）. Support surf the internet with a computer simultaneously via netting twine Support adjusting screen brightness according to ambient brightness Photosensitive and energy-saving functions Supporting Android and computer sharing USB interface The motherboard supports plug-and-pull installation, which makes after-sales maintenance simple and convenient, and simplifies wire rods. |

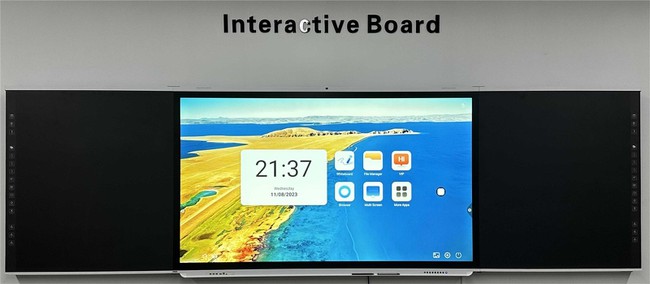

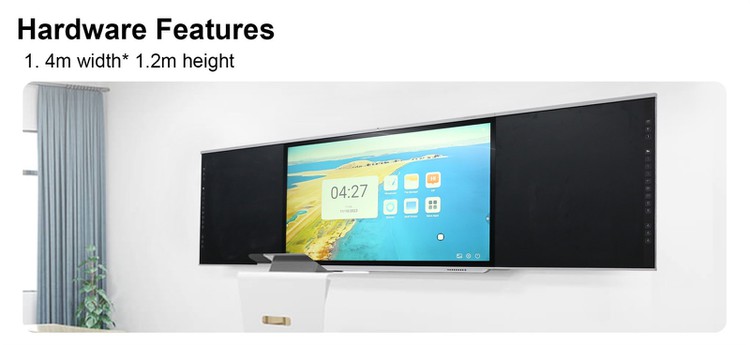

| Machine picture |  |
) shortcut menu, software shortcut icon (Android home page) and other shortcut operations
2. Machine characteristic
| Shell and appearance |
Aluminum alloy surface arc angle design, pure black plane, three combination products, side port buttons, Side speaker on the lower side of the main screen |
| Overall dimension | 4200L*1220W*100H (mm) |
| Power consumption | ≤400W |
| Standby power | ≤0.5W |
| Voltage | 110-240V(AC) |
3. Operation system specification
| CPU | CORTEX A53 Quad-core 1.5GHz |
| Operation system (standard) | Android 6.0 embedded |
| RAM | DDR3 2G |
| Memory | 32GB |
| External memory | SD card up to 128G(Optional) |
| Operation system (optional) | Windows 10 Professional operate system(license optional) |
| Configuration | i7-6th Generation DDR4 8GB RAM+ 256GB SSD |
4. Screen specification

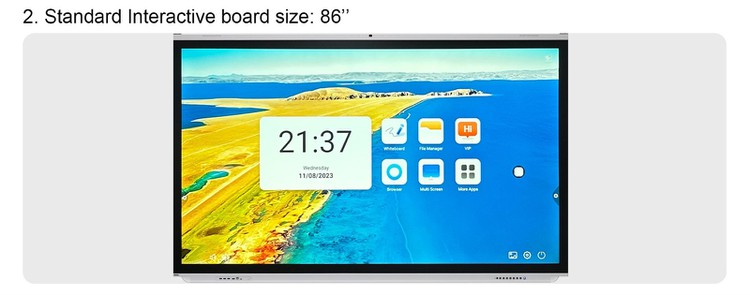

| Display size | 86inch（16：9） |
| Display type | LCD |
| Active area | 1900 (W)×1070(H) mm |

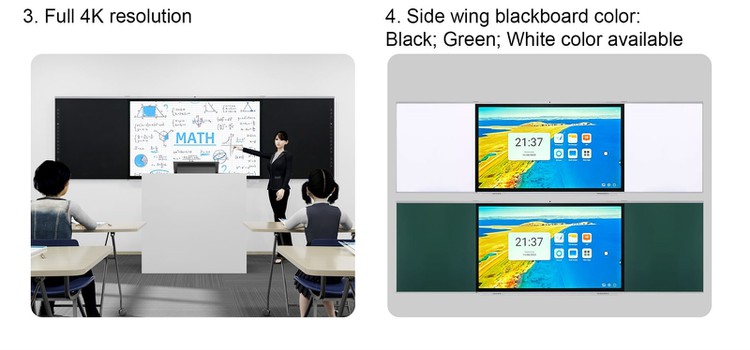

| Physical resolution | 3840（H）×2160（V）（UHD） |
| color | 10bit, 1.07B |
| Refresh rate | 60HZ |
| Brightness | 250cd/m2 |
| Contrast ratio | 4000：1（Typ.） |
| Viewing angle | 178° |
| Glass thickness | 4mm tempered glass |
| Service life | 50000 hours |
| Overall dimension | 4200(W)*1220(H)mm |
FAQ
Q: Can you provide OEM service for the all-in-one interactive flat panel?
A: Yes, well supported. We can customize it according to your requests.
Q: Do you have stock?
A: We keep 3000-5000 units in Stock every single Month.
Q: Is your company a real manufacturer?
A: Our company is a professional manufacturer in , Shenzhen city, you are the mostly welcome to visit our factory anytime.
Q: How is the quality of the product?
A: Our products have been strictly tested high quality by QC before shipping to customers.And we do own brand selling in domestic China market on line, our brand is "HDFocus".So quality is the first thing for us!
Q: Does the product only use for school?
A: Our products are widely used in hospitals, Schools, offices, etc.
Q: How can I trust your product quality?
A: We have more than 10 years of export experience. From material purchasing to product delivery, we have our own professional staff and procedures to prevent potential quality risk. Our products have been approved by CE & ROHS etc.
Q: What's your after-sale service?
A: If any problems, you will get our reply within 24 hours. The solution will be offered instantly.
